Technical Parameters
Drawings
| Rate voltage.current | 50mA DC12V |
| Contact resistance | ≤150mΩ |
| Operating force | 40±30gf |
| Travel | 0.3±0.2mm |
| Insulated resistance | ≥100MΩ |
| Endurance | ≥100000 |

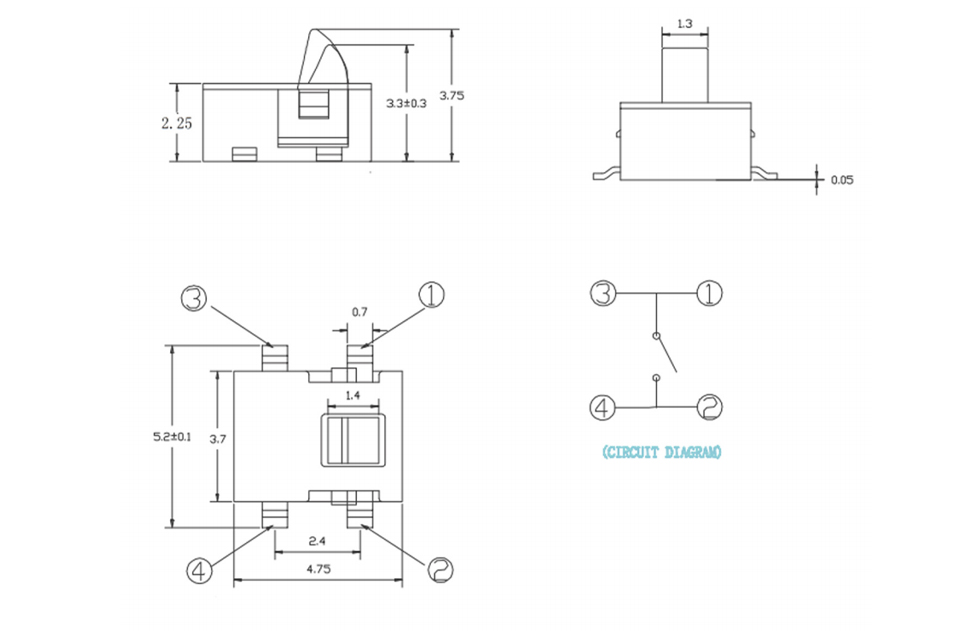

| Dimensions | Circuit Diagram |

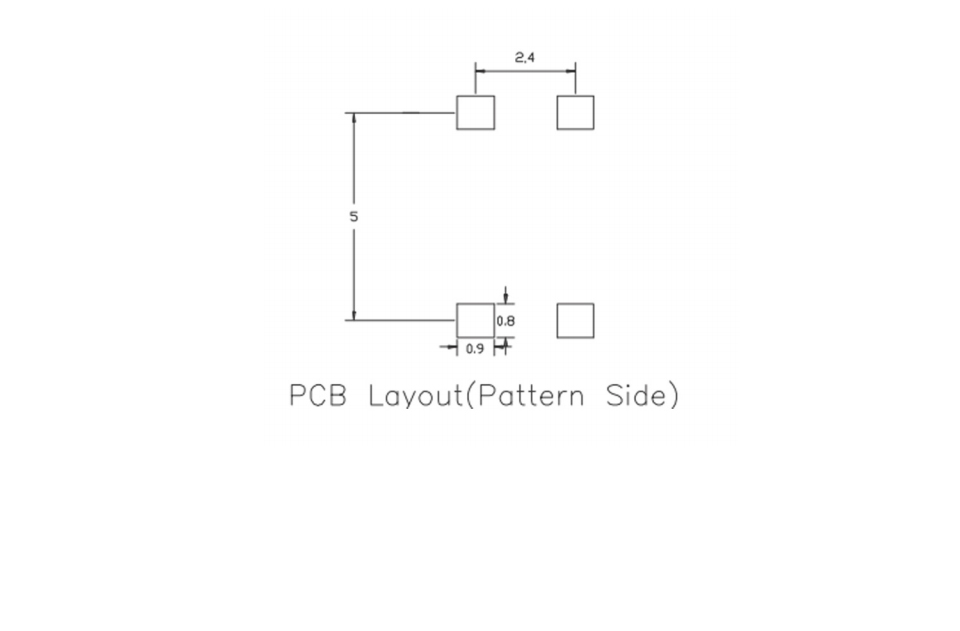

| PCB Layout | |
 |
 |
