  • TS-L005018 7-Pin Vertical Slide Switch with White Actuator
  • TS-L005018 7-Pin Vertical Slide Switch with White Actuator
Slide Switch

TS-L005018 7-Pin Vertical Slide Switch with White Actuator

Inquire Download PDF
PREV：TS-L003028 7-Pin Vertical Slide Switch with Black ActuatorNEXT：TS-L005014 7-Pin Horizontal Slide Switch with Black Actuator
Detailed Features Drawings
Rated electrical load: DC12V   0.1A
Insulation resistance: ≥100MΩ
Dielectric strength: AC250V(50Hz)1min
Ambient temperature: -25℃~+70℃
Relative humidity: (40°c)≤95%
Contact resistance: ≤50MΩ
Operating force: 160gf±20gf
Temperature resistance: 250°
Service life: 10000

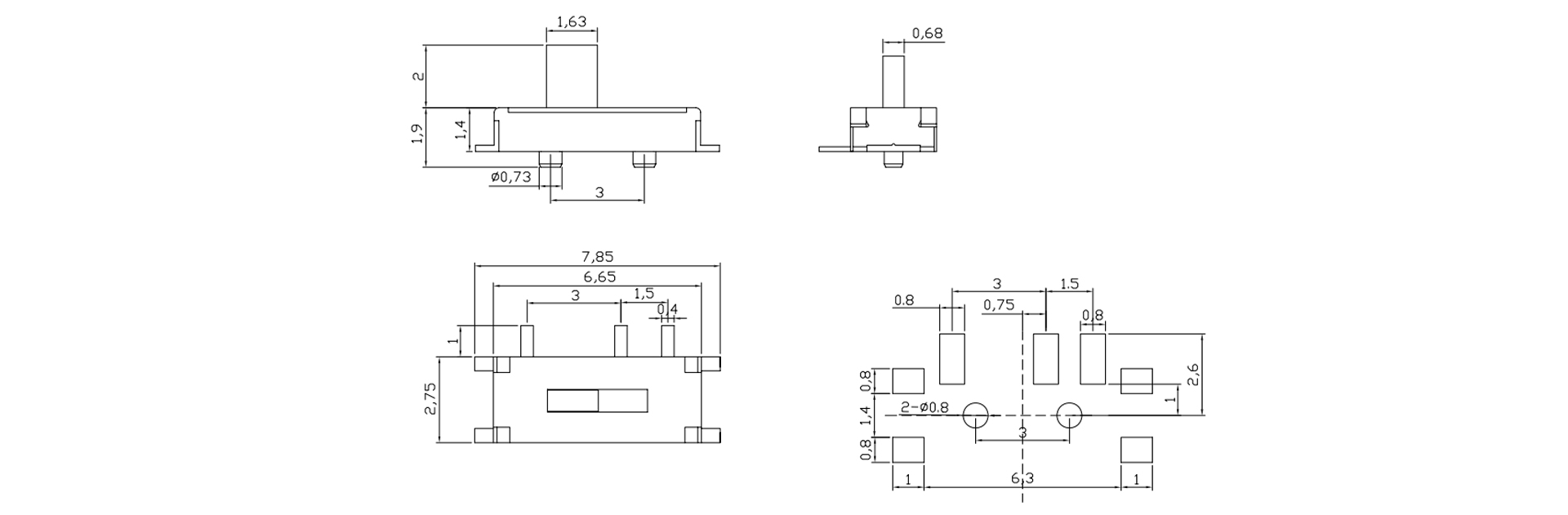

Dimensions
