Detailed Features
Drawings
| Rated electrical load: | DC 12 V, 50 mA |
| Insulation resistance: | ≥ 100 MΩ |
| Dielectric strength: | AC 250 V (50 Hz) for 1 minute |
| Travel: | 1.5 ± 0.2 mm |
| Contact resistance: | < 100 mΩ |
| Service life: | 5,000 cycles |
| Actuation force: | 180 gf ± 50 gf |

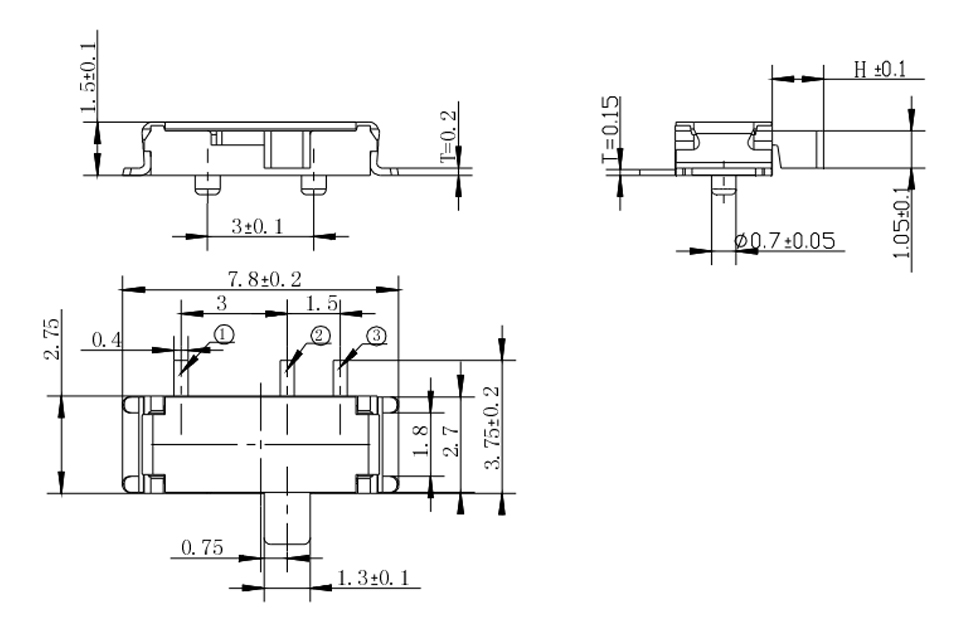

| Dimensions | Circuit Diagram |

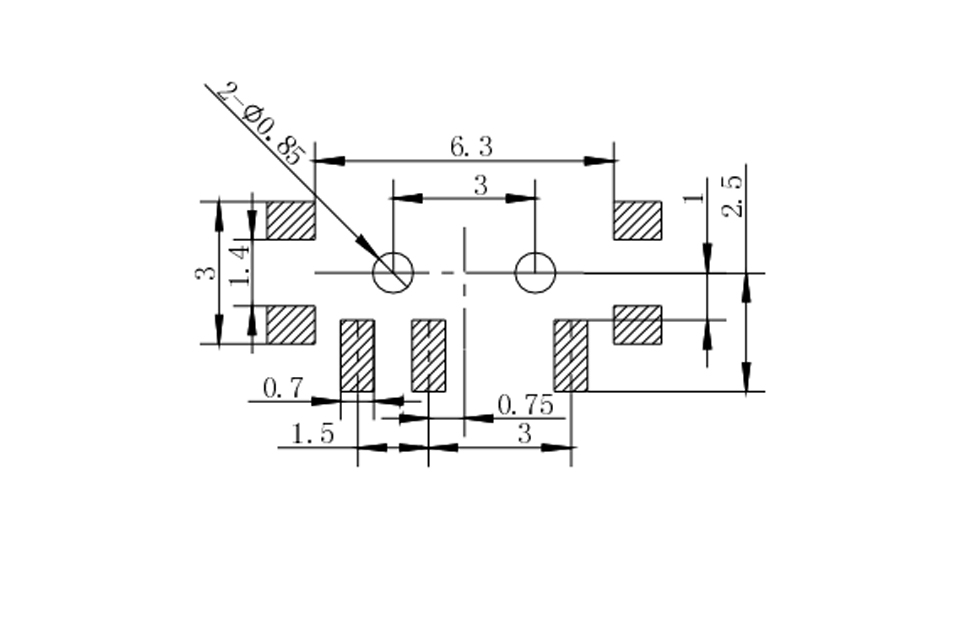

| PCB Layout | |
 |
 |
