TS-S011232 2.54mm Pitch Single Row Right-Angle Pin Header, 1 x 4 Pins

Inquire Download PDF
PREV：TS-S011156 2.54mm Pitch Single Row Straight Pin Header, 1 x 4 PinsNEXT：TS-Q007015 1.27mm Pitch Dual Row Straight Pin Header, 2 x 4 Pins
Technical Parameters Drawings
Current Rating:  3 Amps
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20m Ω Max
Withstanding Voltage:  AC 1000V
Operation Temperature: -40° to+105°
Contact Material:  Brass
Standard:  PBT
Insrlator Material:  Polyester(UL 94V-0)
Contact Plating:  Gold Flash
Max. Processing Temp:  200°C for30-60seconds
(220°C for5seconds)

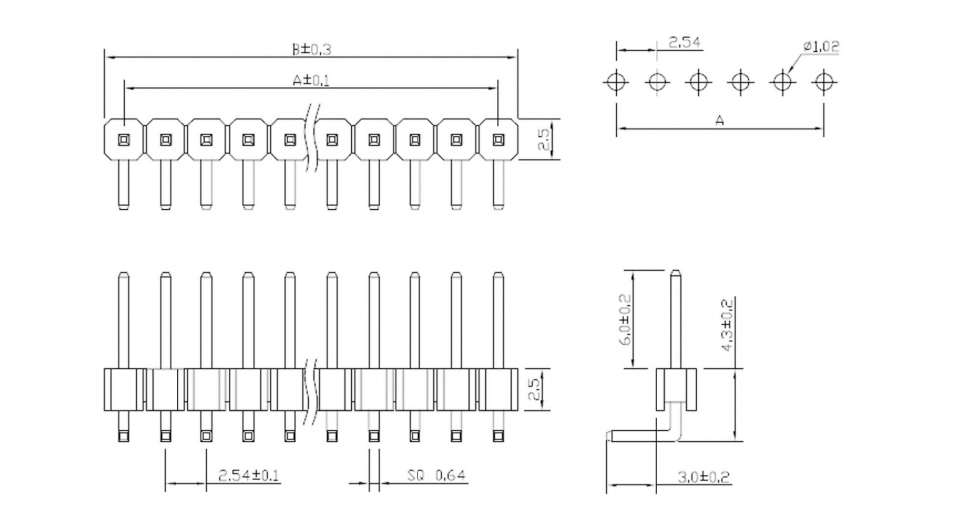

Dimensions
