Pin Headers And Sockets

TS-Q007015 1.27mm Pitch Dual Row Straight Pin Header, 2 x 4 Pins

Inquire Download PDF
PREV：TS-S011232 2.54mm Pitch Single Row Right-Angle Pin Header, 1 x 4 PinsNEXT：TS-S011426 2.54mm Pitch Female Header, 8.5mm Height, Dual Row 2 x 4 Pins, Straight Y-Type
Technical Parameters Drawings
Current Rating: 1.0Amps
Withstanding Voltage:  AC 500V
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20m Ω Max
Operation Temperature: -40° to+105°
Insrlator Material:  Polyester (UL 94V-0)
Contact Material:  Brass
Standard:  PA6T
Contact Plating:  Gold Flash
Max. Processing Temp:  240° C for30-60seconds
(260° C for 5 seconds)

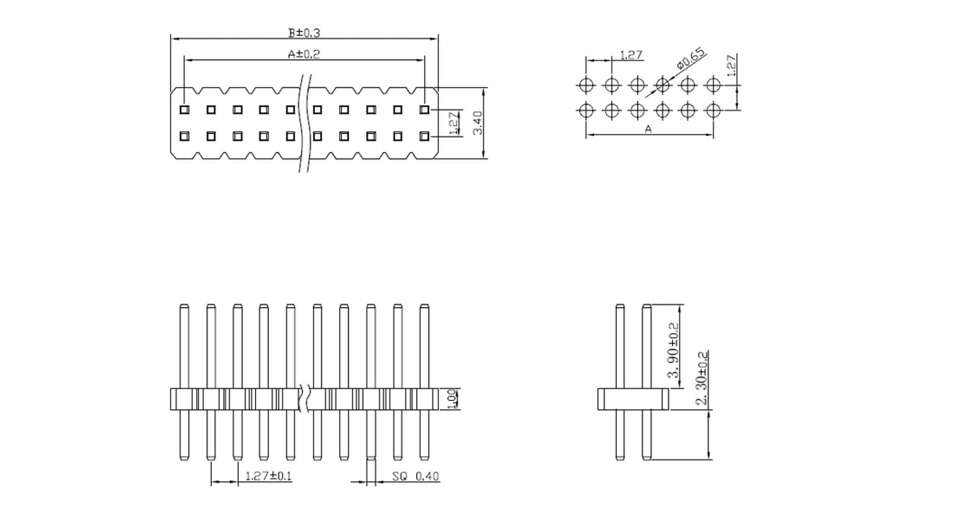

Dimensions
