TS-Q005390 2.0mm Pitch Single Row Straight Female Header, 1 x 6 Pins, U-Shaped

Inquire Download PDF
PREV：TS-S011426 2.54mm Pitch Female Header, 8.5mm Height, Dual Row 2 x 4 Pins, Straight Y-TypeNEXT：TS-Q005106 2.0mm Pitch Dual Row Right-Angle Pin Header, 2 x 7 Pins
Technical Parameters Drawings
Current Rating: 1.5 Amps
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20m Ω Max
Withstanding Voltage:  AC 500V
Operation Temperature: -40° to+105°
Contact Material:  Brass
Standard:  PA6T
Insrlator Material:  Polyester (UL 94V-0)
Contact Plating:  Gold Flash
Max. Processing Temp:  240° C for30-60seconds
(260° C for 5 seconds)

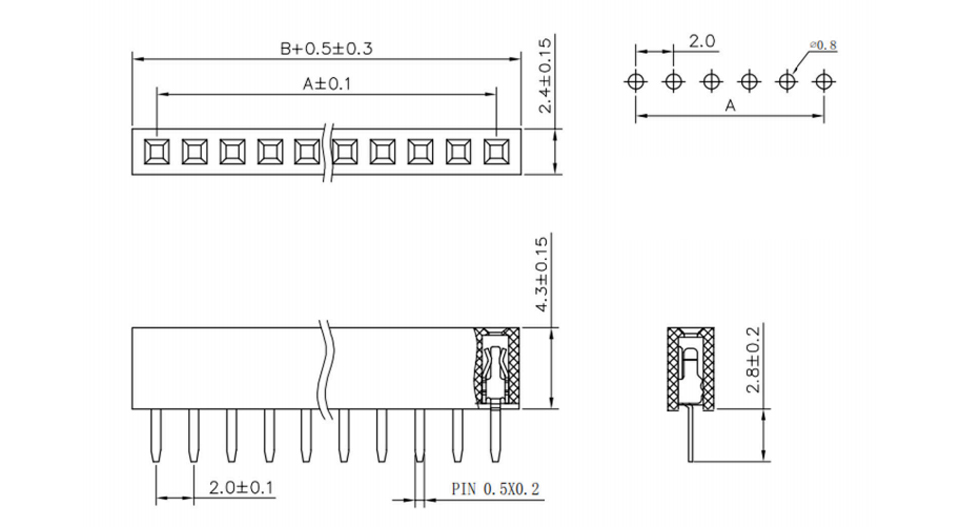

Dimensions
