TS-Q005106 2.0mm Pitch Dual Row Right-Angle Pin Header, 2 x 7 Pins

Inquire Download PDF
PREV：TS-Q005390 2.0mm Pitch Single Row Straight Female Header, 1 x 6 Pins, U-ShapedNEXT：No next article
Technical Parameters Drawings
Current Rating: 1.5 Amps
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20m Ω Max
Withstanding Voltage:  AC 500V
Operation Temperature: -40° to+105°
Contact Material:  Brass
Standard:  PA6T
Insrlator Material:  Polyester (UL 94V-0)
Contact Plating:  Gold Flash
Max. Processing Temp:  260°C for30-60seconds

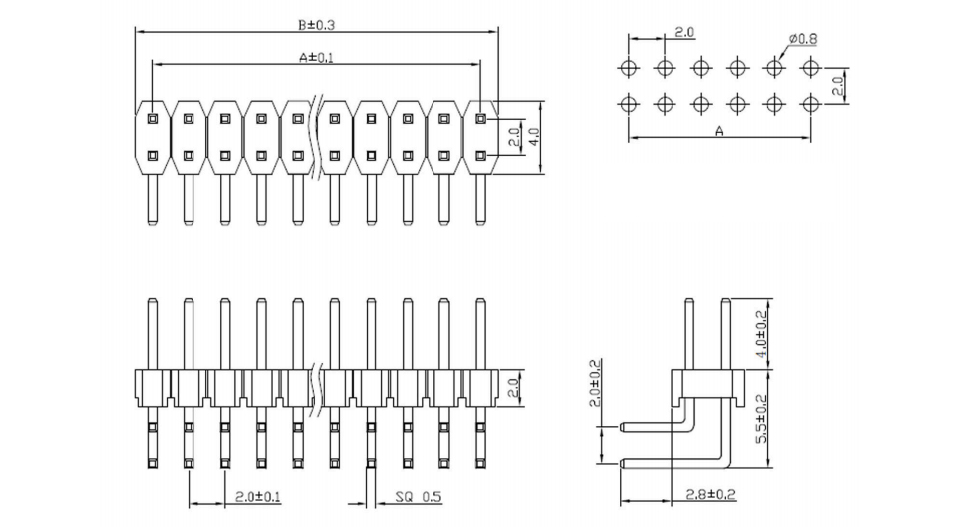

Dimensions
