Technical Parameters

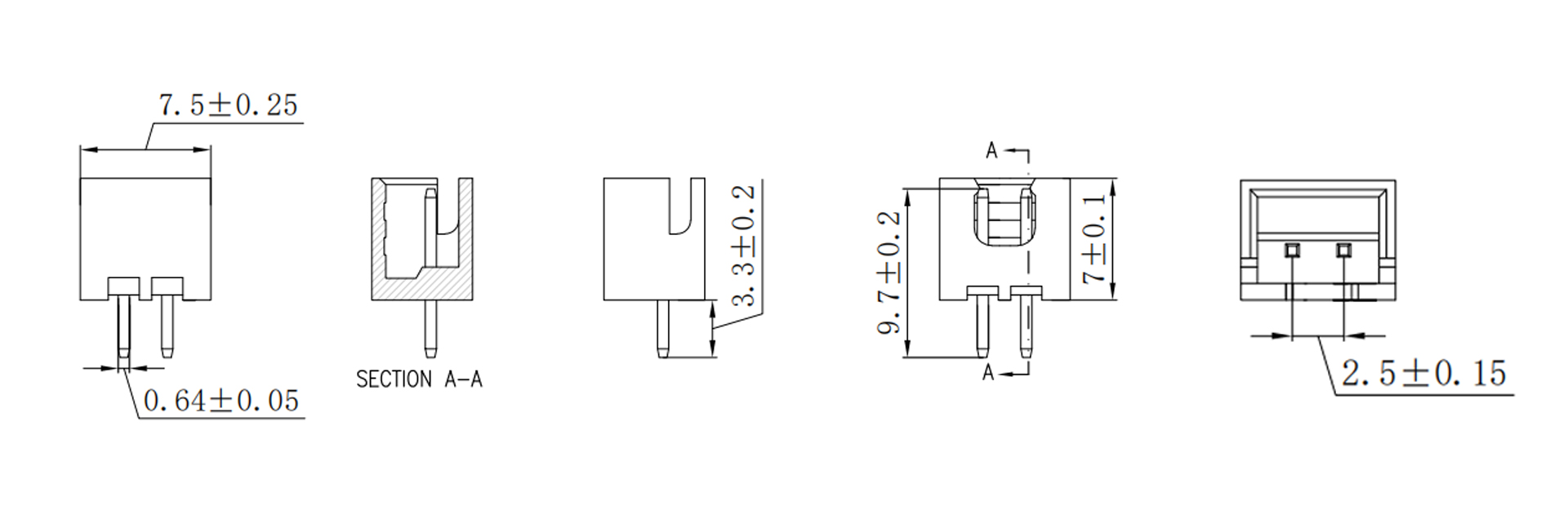

Drawings
| Technical Specifications | |
| Number of Poles: | 2–20 |
| Applicable Wire Gauge: | AWG #28 – #22 |
| Applicable PCB Thickness: | 1.6 mm |
| Temperature Range: | -25°C to +85°C |
| Voltage Rating: | 250V AC/DC |
| Current Rating: | 3A |
| Contact Resistance: | ≤ 0.02 Ω |
| Insulation Resistance: | ≥ 1000 MΩ |
| Withstand Voltage: | 1000V AC / 1 min |
| Material: | |
| Wafer: | Nylon PA66 UL94V-2(0) |
| Dimensions |
 |
