CO-A010018-134 2.54mm Pitch Right-Angle Pin Connector

Inquire Download PDF
PREV：TS-Q002497-282 VH 3.96mm Pitch Vertical SMT Header ConnectorNEXT：CO-A005011-184 2.54mm Pitch Vertical SMT Pin Header with Latch

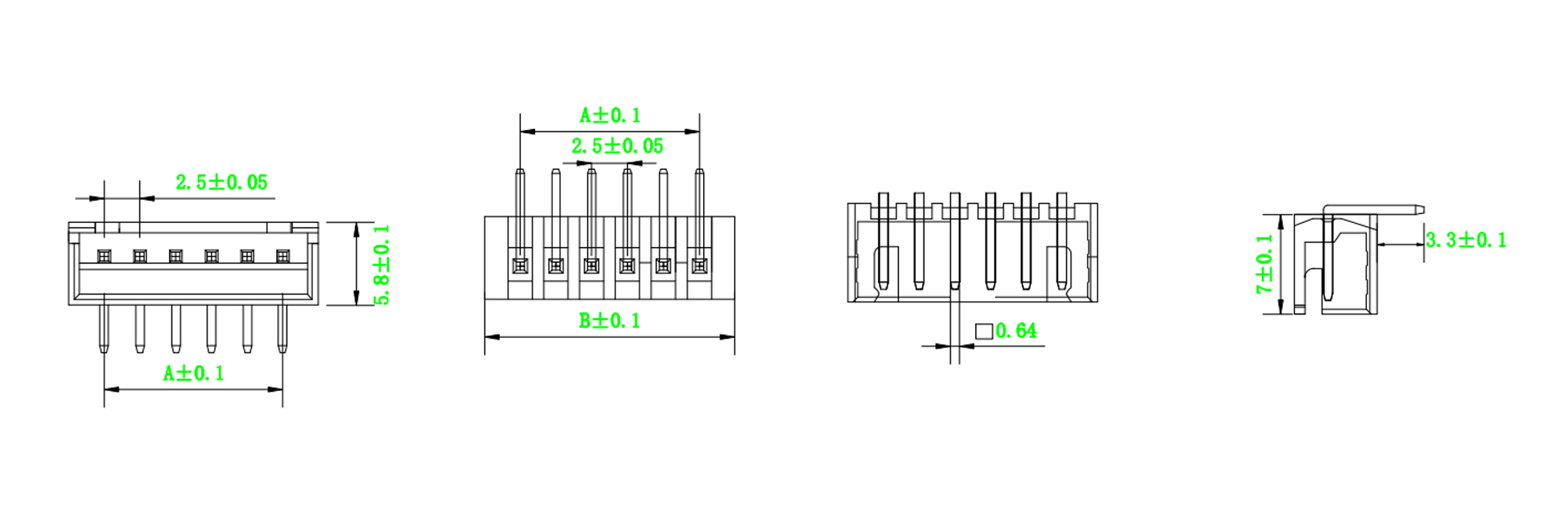

Technical Parameters Specification Drawings
Technical Specifications
Number of Poles:  2–20
Applicable Wire Gauge:  AWG #28 – #22
Applicable PCB Thickness:  1.6 mm
Temperature Range:  -25°C to +85°C
Voltage Rating:  250V AC/DC
Current Rating:  3A
Contact Resistance:  ≤ 0.02 Ω
Insulation Resistance:  ≥ 1000 MΩ
Withstand Voltage:  1000V AC / 1 min
Material:
Wafer:  Nylon PA66 UL94V-2(0)
Poles Type Dimensions  mm
A B
2  XH-2A 2.5  7.5
3  XH-3A 5  10
4  XH-4A 7.5  12.5
5  XH-5A 10  15
6  XH-6A   12.5  17.5
7  XH-7A   15  20
8  XH-8A   17.5  22.5
9  XH-9A   20  25
10  XH-10A   22.5  27.5
11  XH-11A   25  30
12  XH-12A   27.5  32.5
