Home · Products · Tactile Switch · I Series 6x6 Middle Two-Pin / 12x12 Positive Pressure Tactile Switch · Tactile Switch TS-I004035 12×12×7.5, 4-Pin DIP, White Actuator, High Silver-Clad Contact
  • Tactile Switch TS-I004035 12×12×7.5, 4-Pin DIP, White Actuator, High Silver-Clad Contact
  • Tactile Switch TS-I004035 12×12×7.5, 4-Pin DIP, White Actuator, High Silver-Clad Contact
  • Tactile Switch TS-I004035 12×12×7.5, 4-Pin DIP, White Actuator, High Silver-Clad Contact
  • Tactile Switch TS-I004035 12×12×7.5, 4-Pin DIP, White Actuator, High Silver-Clad Contact
I Series 6x6 Middle Two-Pin / 12x12 Positive Pressure Tactile Switch

Tactile Switch TS-I004035 12×12×7.5, 4-Pin DIP, White Actuator, High Silver-Clad Contact

Inquire Download PDF
PREV：Tactile Switch TS-F007092 12×12×7.3, 4-Pin SMD, Square ActuatorNEXT：TS-I006016 12*12 Through-Hole Waterproof Tactile Switch

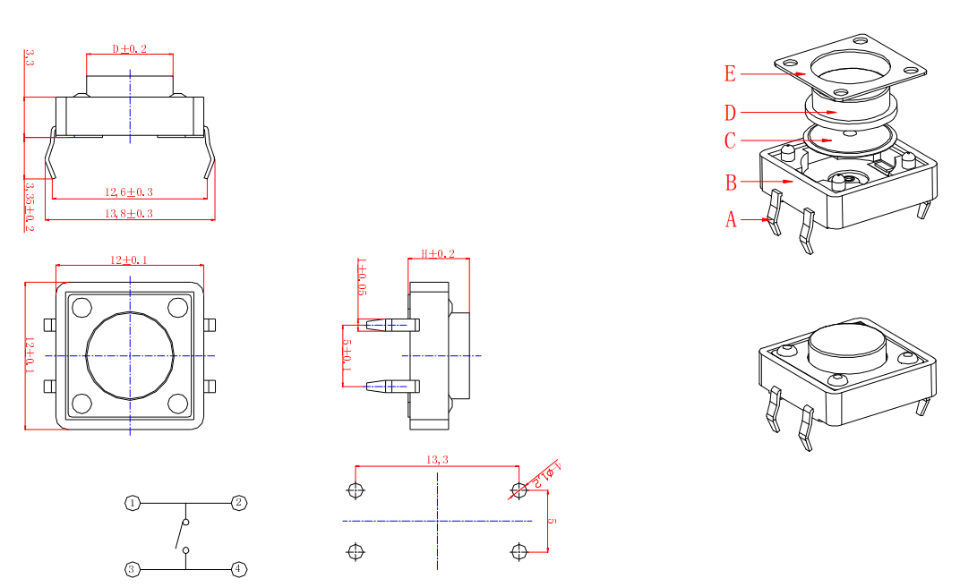

Technical Parameters Drawings
Rated Current： 50mA 12V DC
Contact Resistance： 100mΩ
Travel： 0.4±0.1mm
Insulation Resistance： 100MΩ
Withstand Voltage： 250v 50Hz 1Min
Circuit Diagram
PCB Layout
