Tactile Switch TS-F007092 12×12×7.3, 4-Pin SMD, Square Actuator

Inquire Download PDF
PREV：No previous articleNEXT：Tactile Switch TS-I004035 12×12×7.5, 4-Pin DIP, White Actuator, High Silver-Clad Contact

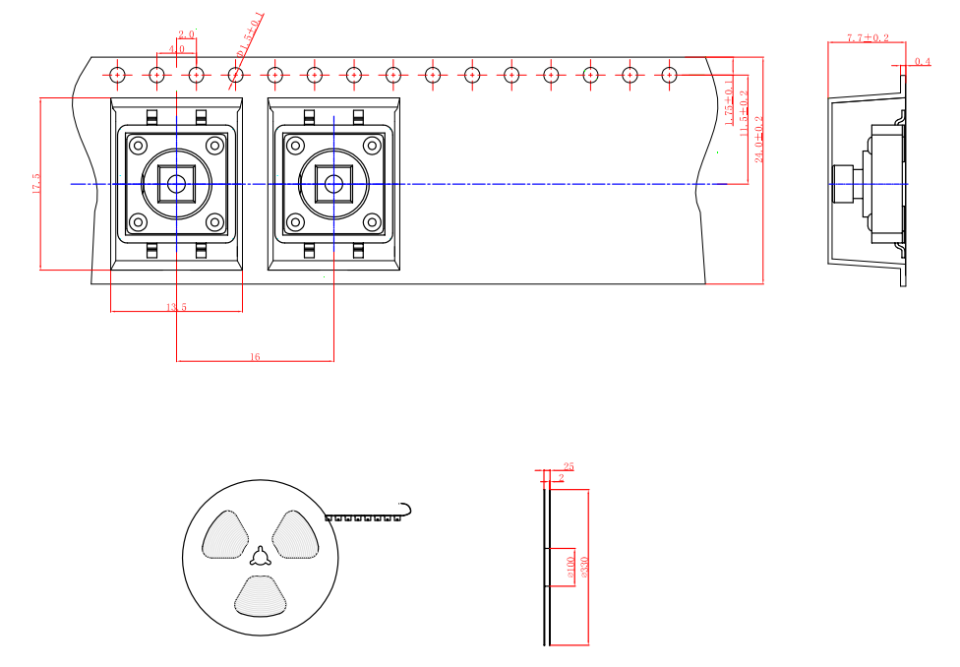

Technical Parameters Drawings
Rated Current： 50mA 12V DC
Contact Resistance： 100mΩ
Travel： 0.4±0.1mm
Insulation Resistance： 100MΩ
Withstand Voltage： 250v 50Hz 1Min

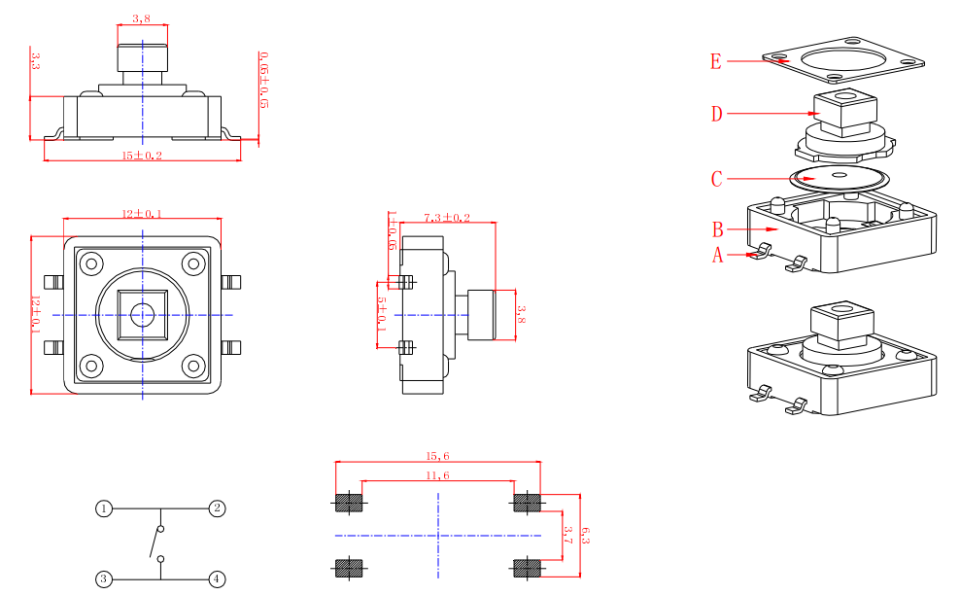

Dimensions Circuit Diagram
PCB Layout
