G Series 6.2x6.2 Silicone Tactile Switch

Tactile Switch TS-T003115, 8×8mm, Long Travel Type

Inquire Download PDF
PREV：Tactile Switch TS-G003472, 6.2×6.2×5.1mm, Silicone Actuator with Buckle, Orange Cap, Covered Terminals, Black BaseNEXT：TS-G004213A 6.2*6.2 Blue-Cap Enclosed-Leg Silicone Tactile Switch
Technical Parameters Drawings
Rated Current: 50mA
Rated voltage: DC12V
Contact resistance: ≤100m Ω
Insulation Resistance: ≥100Μ Ω
Compressive strength: AC250V50Hz/1min
Operating force: 900±100gf
Travel: 1.2mm±0. 3mm
Mechanicallife: 200000 cycles Min
Temperature Range: -40° C TO +80° C

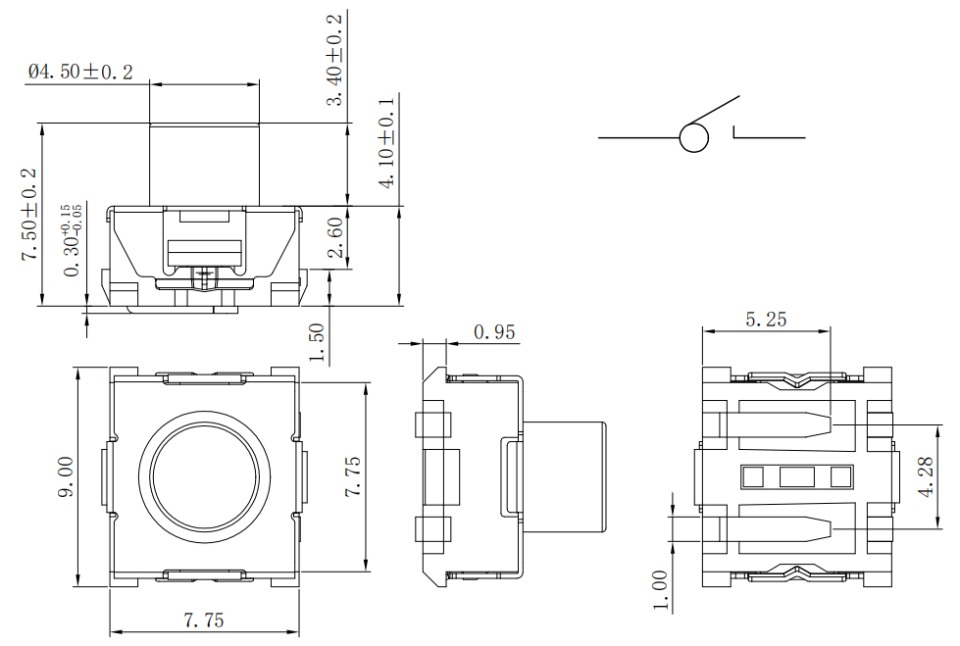

Dimensions
