G Series 6.2x6.2 Silicone Tactile Switch

Tactile Switch TS-G003472, 6.2×6.2×5.1mm, Silicone Actuator with Buckle, Orange Cap, Covered Terminals, Black Base

Inquire Download PDF
PREV：No previous articleNEXT：Tactile Switch TS-T003115, 8×8mm, Long Travel Type
Technical Parameters Drawings
Rated Current： 50mA 12V DC
Contact Resistance： 100mΩ
Travel： 0.30±0.1mm
Insulation Resistance： 100MΩ
Withstand Voltage： 250v 50Hz 1Min
Waterproof Rating： IP67

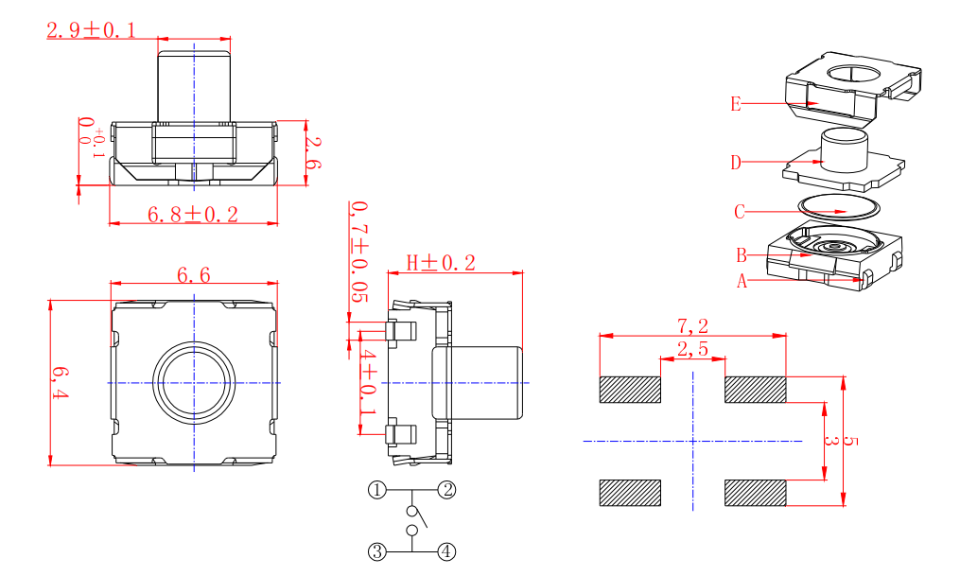

Dimensions Circuit Diagram
PCB Layout
