TS-F012009A 8x8 Center 2-Pin Waterproof Tactile Switch

Inquire Download PDF
PREV：TS-F004014 6x6 Center-2-Pin Long-Leg Waterproof Tactile SwitchNEXT：TS-F011040A 6x6x4.1 Red-Head Silicone Tactile Switch
Technical Parameters Drawings
Rated current:  50mA 12VDC
Contact resistance:  100 mΩ
Actuation force:  260±50 gf
Travel:  0.3±0.1 mm
Insulation resistance:  100 MΩ
Lifespan:  100,000 cycles
Waterproof rating:  IP67

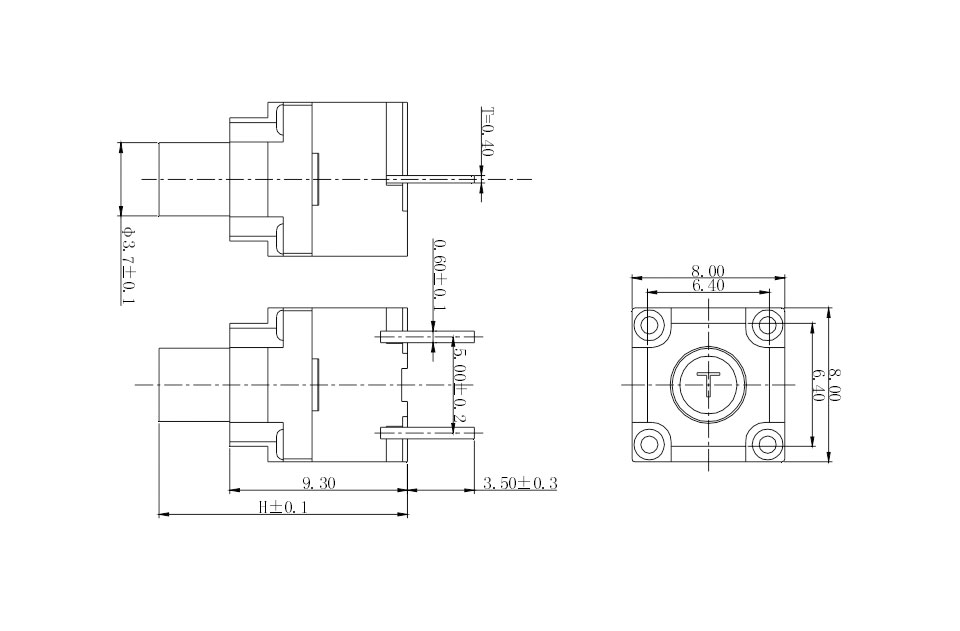

Dimensions Circuit Diagram

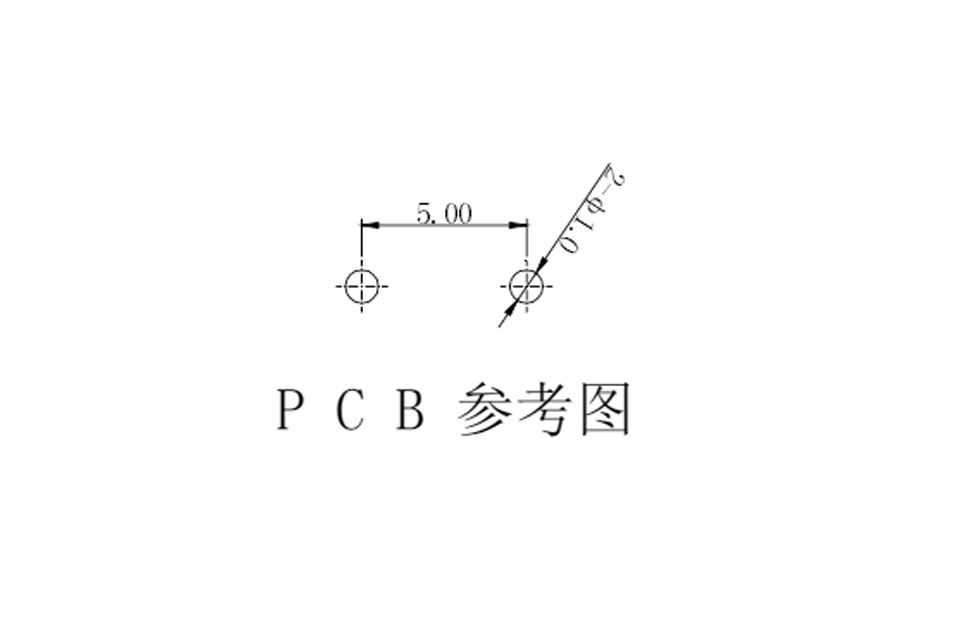

PCB Layout
