  • TS-F011040A 6x6x4.1 Red-Head Silicone Tactile Switch
  • TS-F011040A 6x6x4.1 Red-Head Silicone Tactile Switch
F Series Waterproof Tactile Switch

TS-F011040A 6x6x4.1 Red-Head Silicone Tactile Switch

Inquire Download PDF
PREV：TS-F012009A 8x8 Center 2-Pin Waterproof Tactile SwitchNEXT：TS-F011007A 8.5x8.5 Transparent-Head/AG Silicone Tactile Switch
Technical Parameters Drawings
Rated current: 50 mA, 16 V DC
Contact resistance: 100 mΩ
Actuation force: 350 ± 70 gf
Travel: 0.72 ± 0.3 mm
Insulation resistance: 100 MΩ
Lifespan: 200,000 cycles

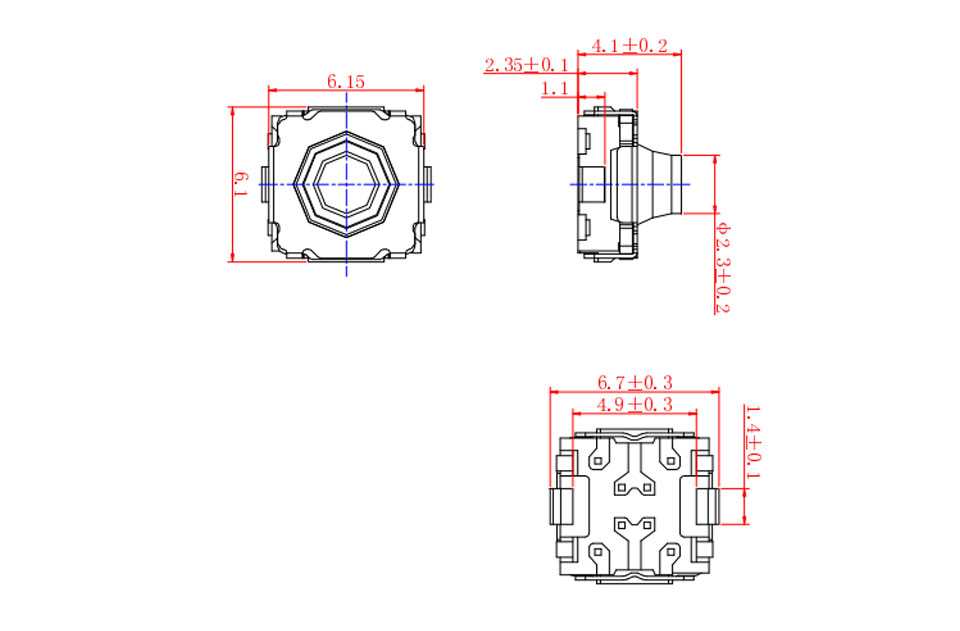

Dimensions Circuit Diagram

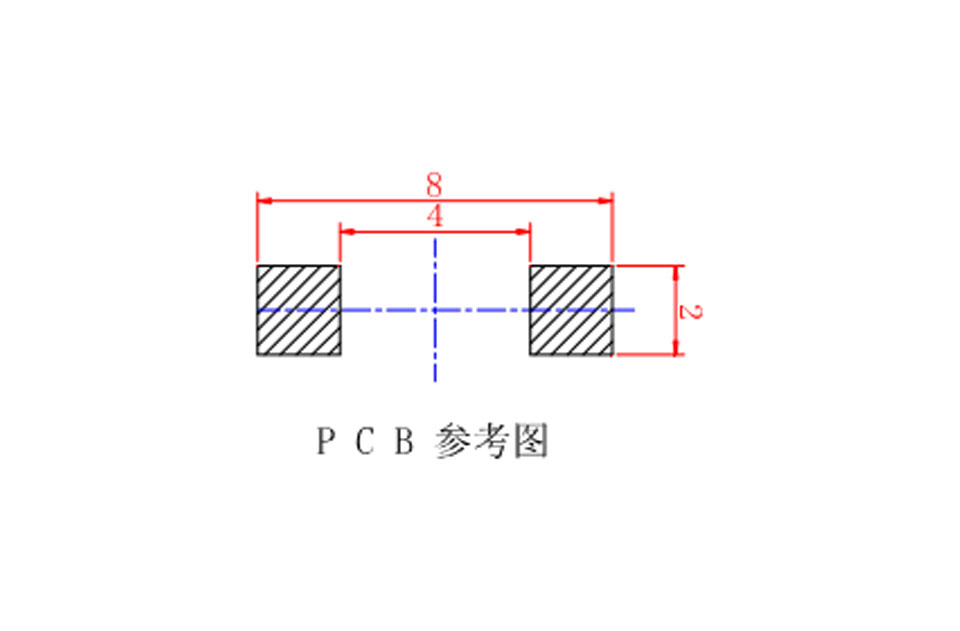

PCB Layout
