E Series Two/Three Legs Tactile Switch

TS-E006102 6×6×5.0mm Tactile Switch, Side Three Pins, Transparent White Head, Pin Length 3.5mm

Inquire Download PDF
PREV：TS-E003050 4.5×4.5×10.3mm Tactile Switch, Side Three Pins, Yellow Head, V-Shaped PinsNEXT：TS-E006069A 6x6 Side-3-Pin Tactile Switch

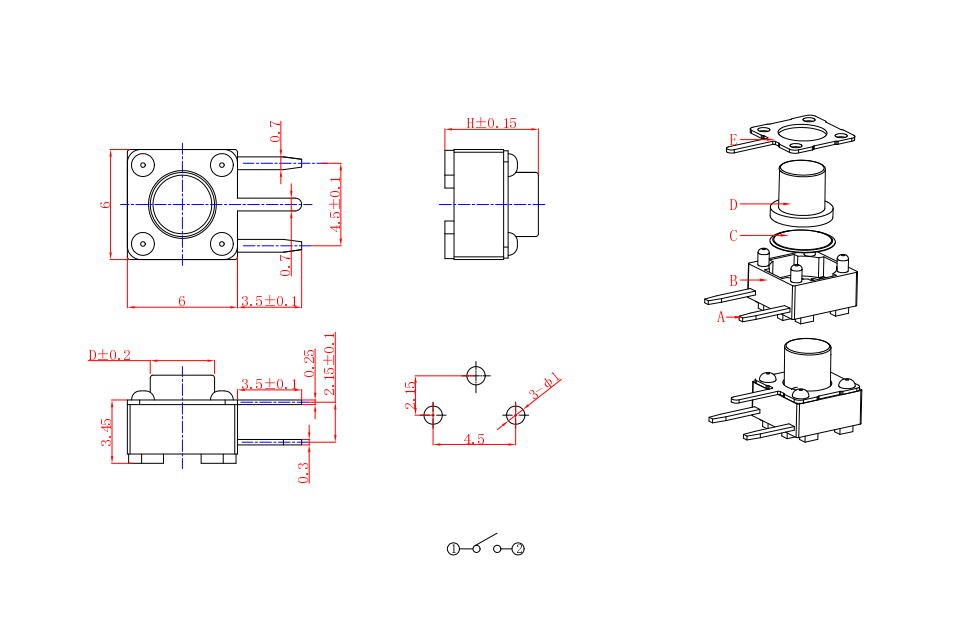

Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.25 ± 0.15 mm
Insulation resistance:  100 MΩ
Dielectric strength:  250 V, 50 Hz, 1 min
Circuit Diagram
PCB Layout
