TS-E003050 4.5×4.5×10.3mm Tactile Switch, Side Three Pins, Yellow Head, V-Shaped Pins

Inquire Download PDF
PREV：No previous articleNEXT：TS-E006102 6×6×5.0mm Tactile Switch, Side Three Pins, Transparent White Head, Pin Length 3.5mm

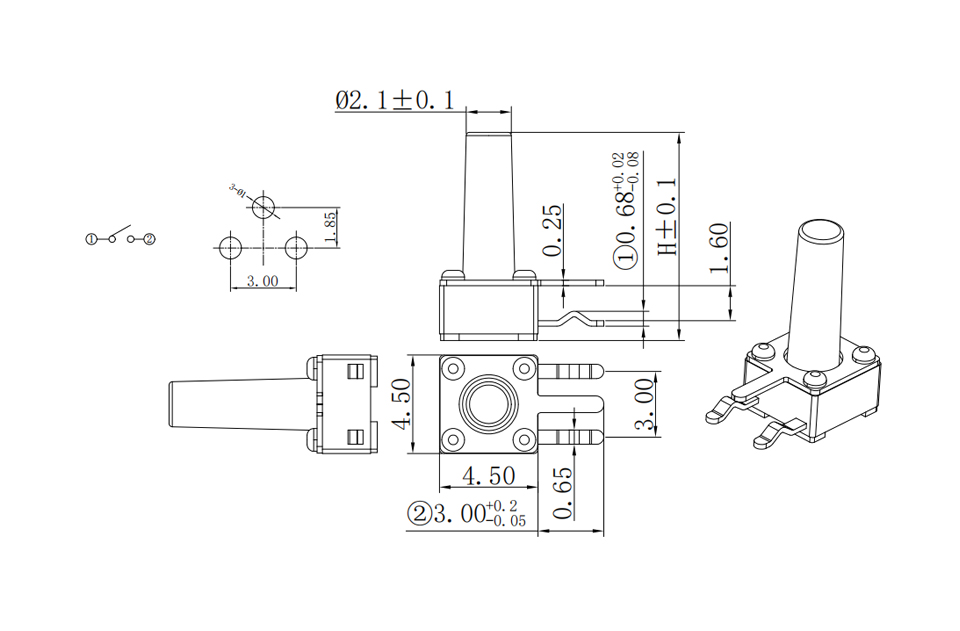

Technical Parameters Drawings
Rated current:  50mA 12V DC
Contact resistance:  100 mΩ
Actuation force:  260±50 gf
Travel:  0.15±0.1 mm
Insulation resistance:  100 MΩ
Dielectric strength:  250 V 50 Hz 1 min
Lifespan:  100,000 cycles
Circuit Diagram
PCB Layout
