Home · Products · Tactile Switch · D Series 4.5x4.5 / 6x6 Positive Pressure Tactile Switch · TS-D002004 4.5*4.5 Through-Hole Tactile Switch
  • TS-D002004 4.5*4.5 Through-Hole Tactile Switch
  • TS-D002004 4.5*4.5 Through-Hole Tactile Switch
D Series 4.5x4.5 / 6x6 Positive Pressure Tactile Switch

TS-D002004 4.5*4.5 Through-Hole Tactile Switch

Inquire Download PDF
PREV：TS-D008053 6.2*6.2 5-Pin SMD Tactile SwitchNEXT：TS-D001066 4.5*4.5 Tactile Switch with Bracket
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.15± 0.05mm
Insulation resistance:  100 MΩ
Withstand voltage:  250 V, 50 Hz, 1 min

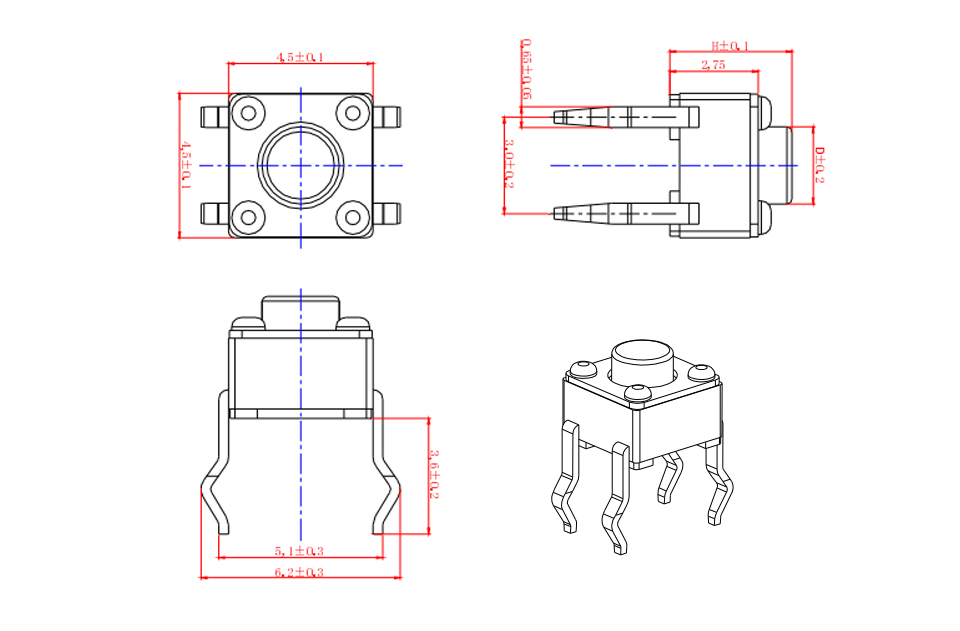

Dimensions Circuit Diagram

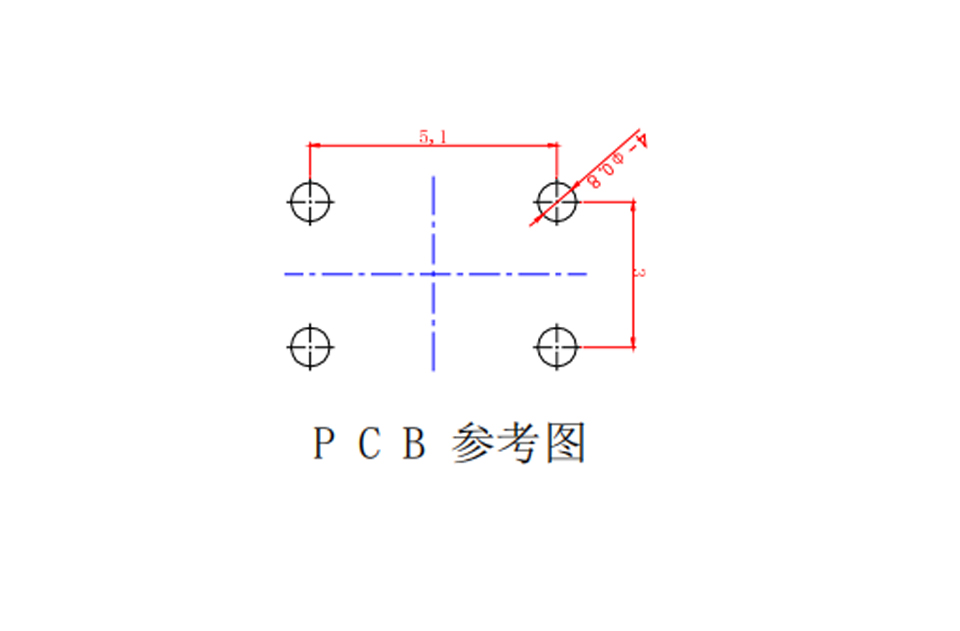

PCB Layout
