D Series 4.5x4.5 / 6x6 Positive Pressure Tactile Switch

TS-D001066 4.5*4.5 Tactile Switch with Bracket

Inquire Download PDF
PREV：TS-D002004 4.5*4.5 Through-Hole Tactile SwitchNEXT：TS-D005004 4.5*4.5 Plastic-Cap Tactile Switch
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.15± 0.1mm
Insulation resistance:  100 MΩ

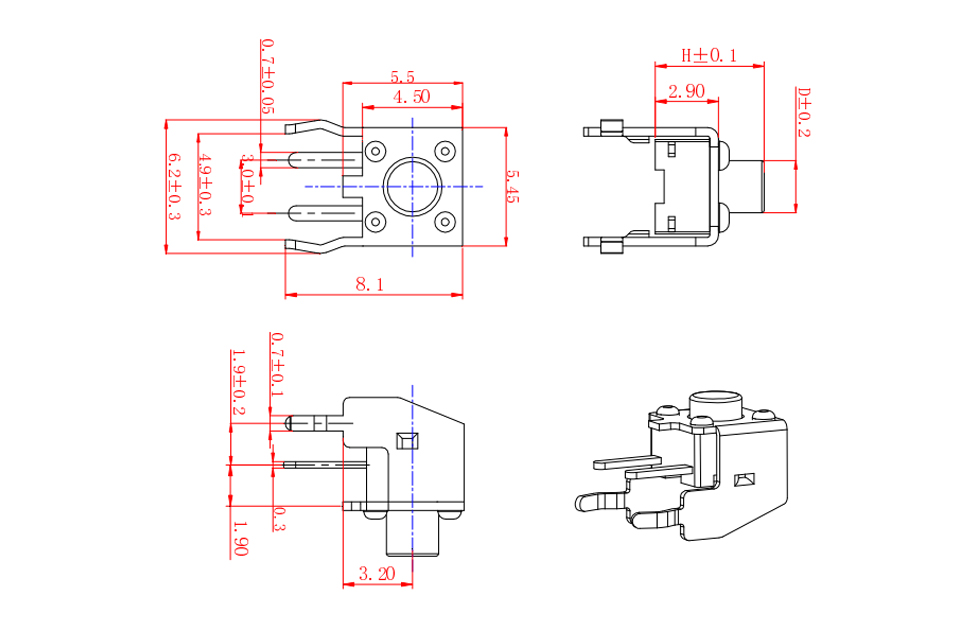

Dimensions Circuit Diagram

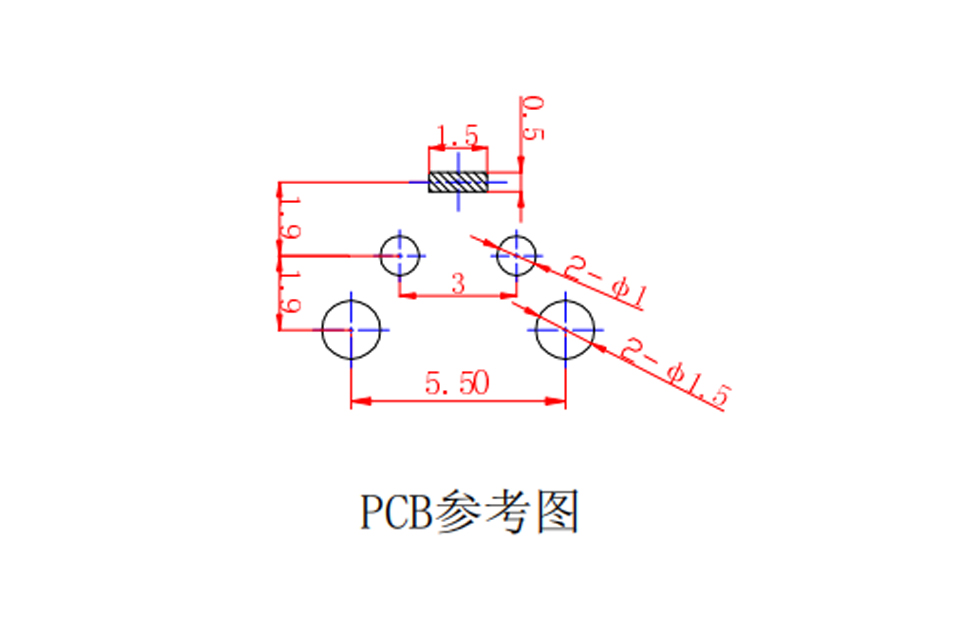

PCB Layout
