  • TS-C017006 3*6*5 Side-Actuated Black Base White Cap Tactile Switch
  • TS-C017006 3*6*5 Side-Actuated Black Base White Cap Tactile Switch
C Series 3x3 / 3x6 / 5.2x5.2 Positive Pressure Tactile Switch

TS-C017006 3*6*5 Side-Actuated Black Base White Cap Tactile Switch

Inquire Download PDF
PREV：TS-C005484 4*4 Square-Cap Tactile Switch with Copper HousingNEXT：TS-C014020 Smiling Face 4-Pin Tactile Switch
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.3± 0.1mm
Insulation resistance:  100 MΩ

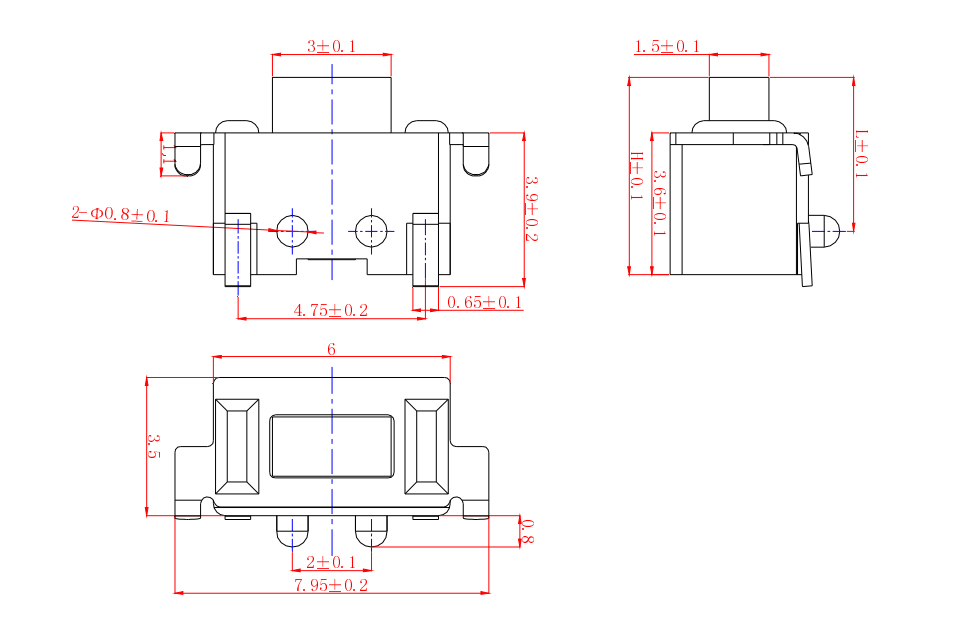

Dimensions Circuit Diagram

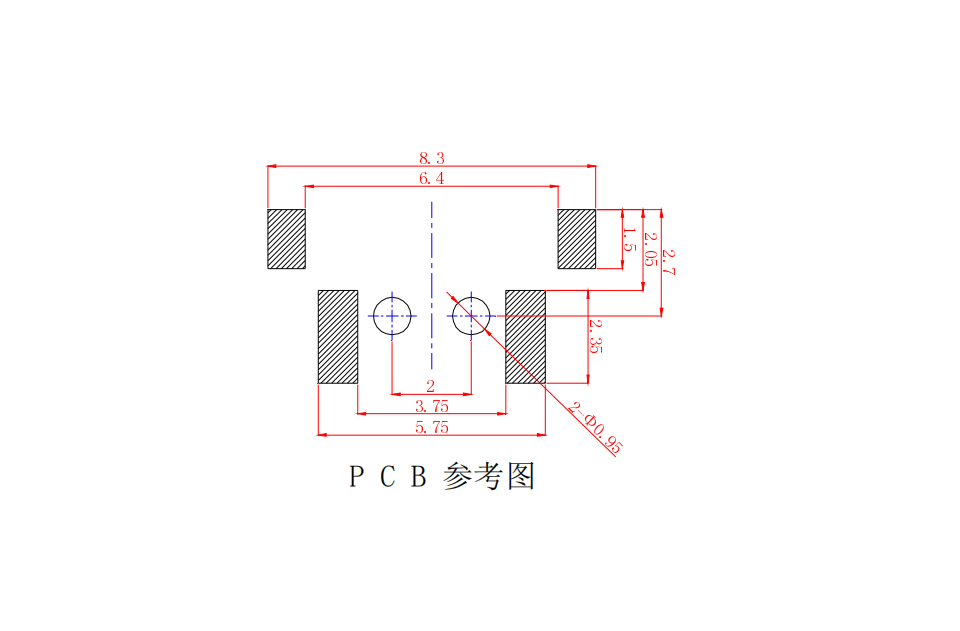

PCB Layout
