  • TS-C014020 Smiling Face 4-Pin Tactile Switch
  • TS-C014020 Smiling Face 4-Pin Tactile Switch
C Series 3x3 / 3x6 / 5.2x5.2 Positive Pressure Tactile Switch

TS-C014020 Smiling Face 4-Pin Tactile Switch

Inquire Download PDF
PREV：TS-C017006 3*6*5 Side-Actuated Black Base White Cap Tactile SwitchNEXT：TS-C014065 Smiling Face 5-Pin Tactile Switch
Detailed Features Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.25± 0.1mm
Insulation resistance:  100 MΩ

Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.15± 0.05mm
Insulation resistance:  100 MΩ
Withstand voltage:  250 V, 50 Hz, 1 min

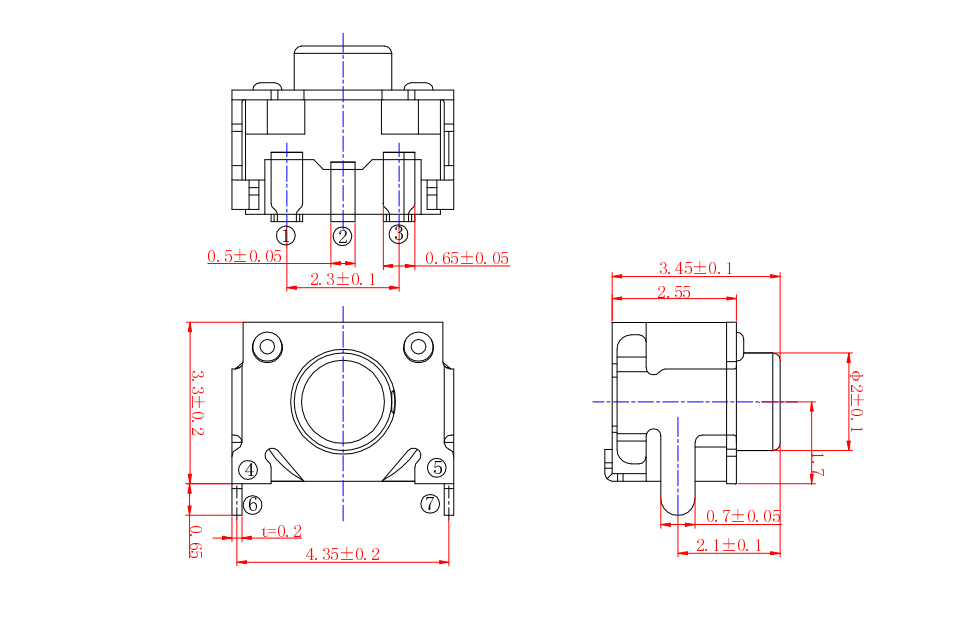

Dimensions Circuit Diagram

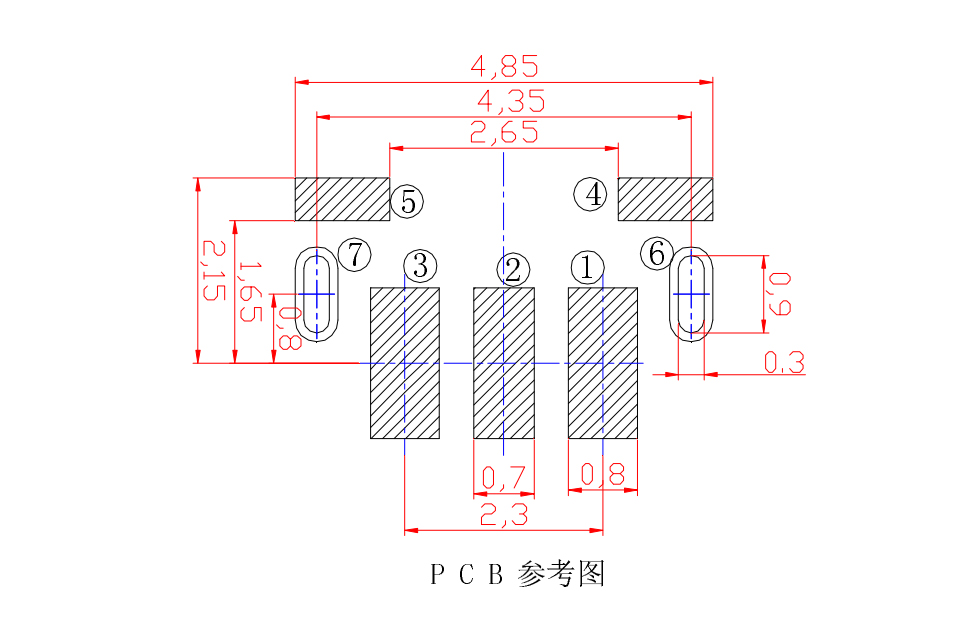

PCB Layout
