  • TS-B010068 3*4 4-Pin Small Turtle Side-Actuated Tactile Switch
  • TS-B010068 3*4 4-Pin Small Turtle Side-Actuated Tactile Switch
B Series 3x4 Positive Pressure Tactile Switch

TS-B010068 3*4 4-Pin Small Turtle Side-Actuated Tactile Switch

Inquire Download PDF
PREV：TS-B009116 3*4*2.5 2-Pin Small Turtle Tactile Switch with Silicone ActuatorNEXT：TS-B013016 3*6*3.5 Recessed-Mount Tactile Switch with Plum-Shaped Actuator
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.20± 0.1mm
Insulation resistance:  100 MΩ
Withstand voltage:  250 V, 50 Hz, 1 min

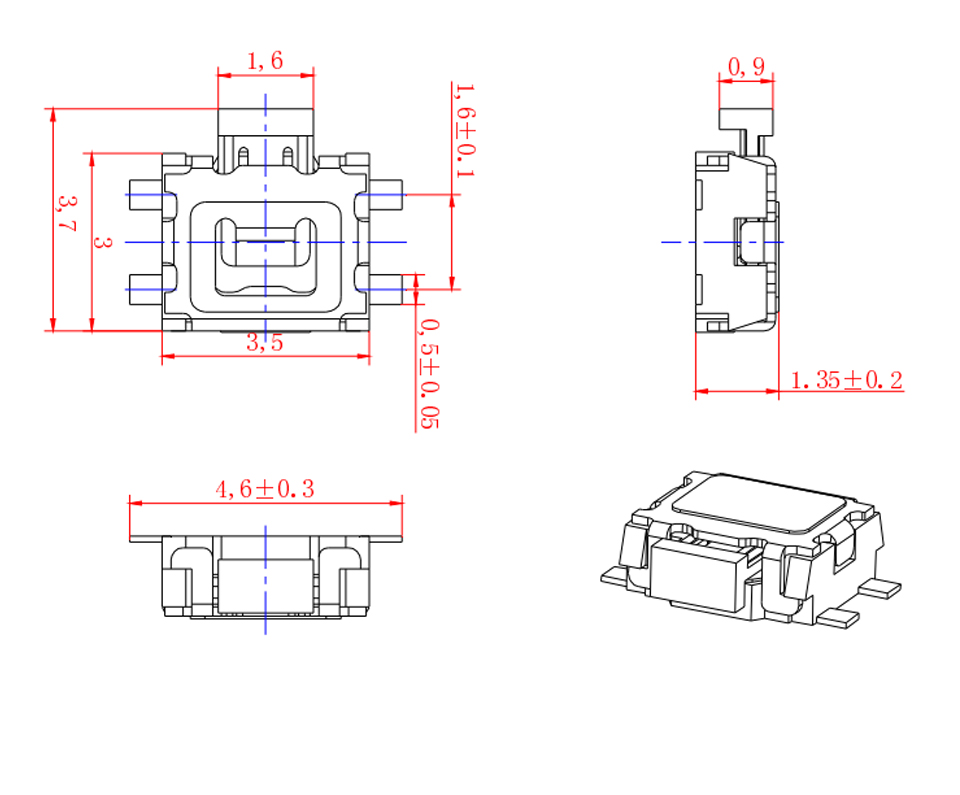

Dimensions Circuit Diagram

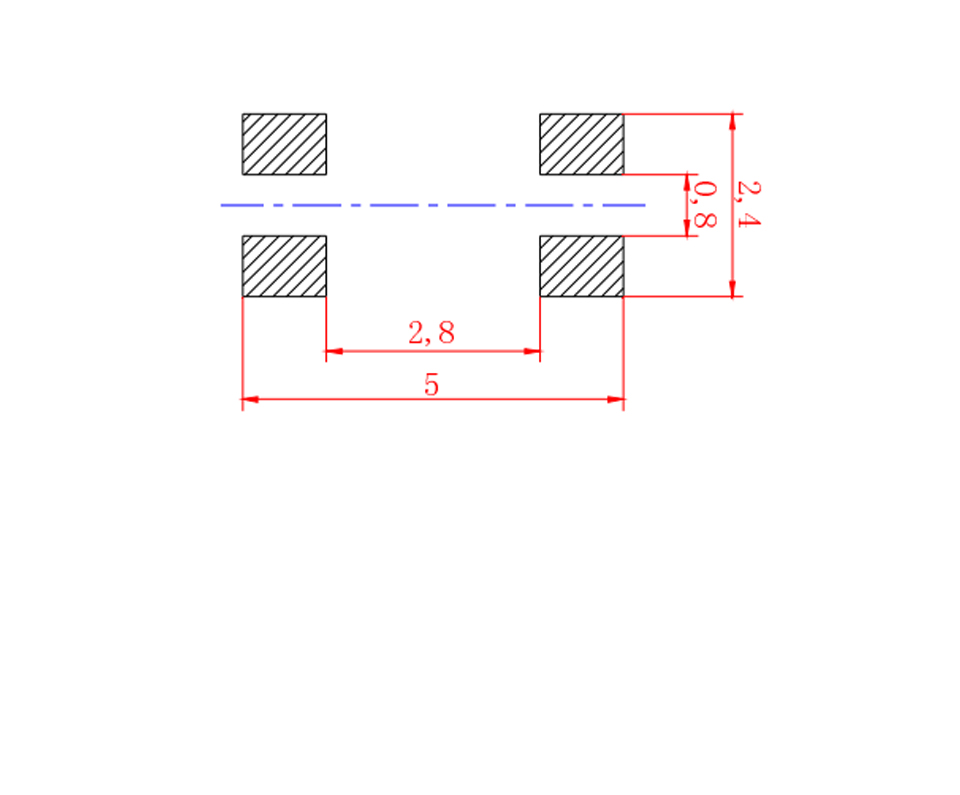

PCB Layout
