B Series 3x4 Positive Pressure Tactile Switch

TS-B009116 3*4*2.5 2-Pin Small Turtle Tactile Switch with Silicone Actuator

Inquire Download PDF
PREV：TS-B006098 3.2*4.2*2.5 Flat-Pin Silicone Type Tactile SwitchNEXT：TS-B010068 3*4 4-Pin Small Turtle Side-Actuated Tactile Switch
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.17± 0.05mm
Insulation resistance:  100 MΩ
Withstand voltage:  250 V, 50 Hz, 1 min

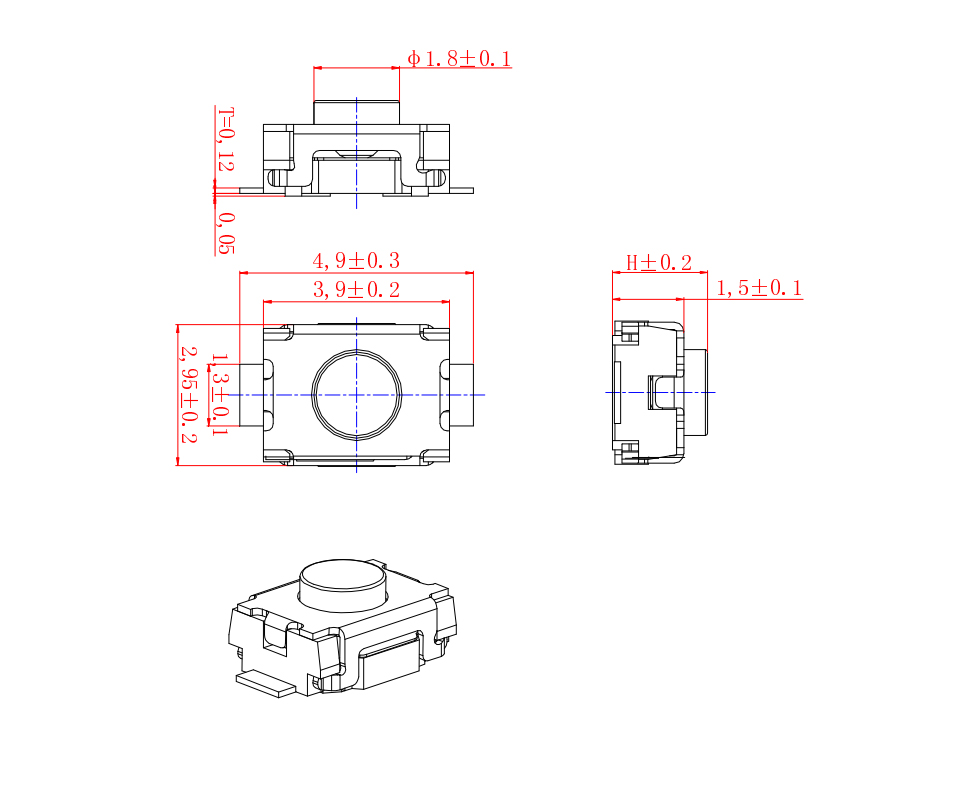

Dimensions Circuit Diagram

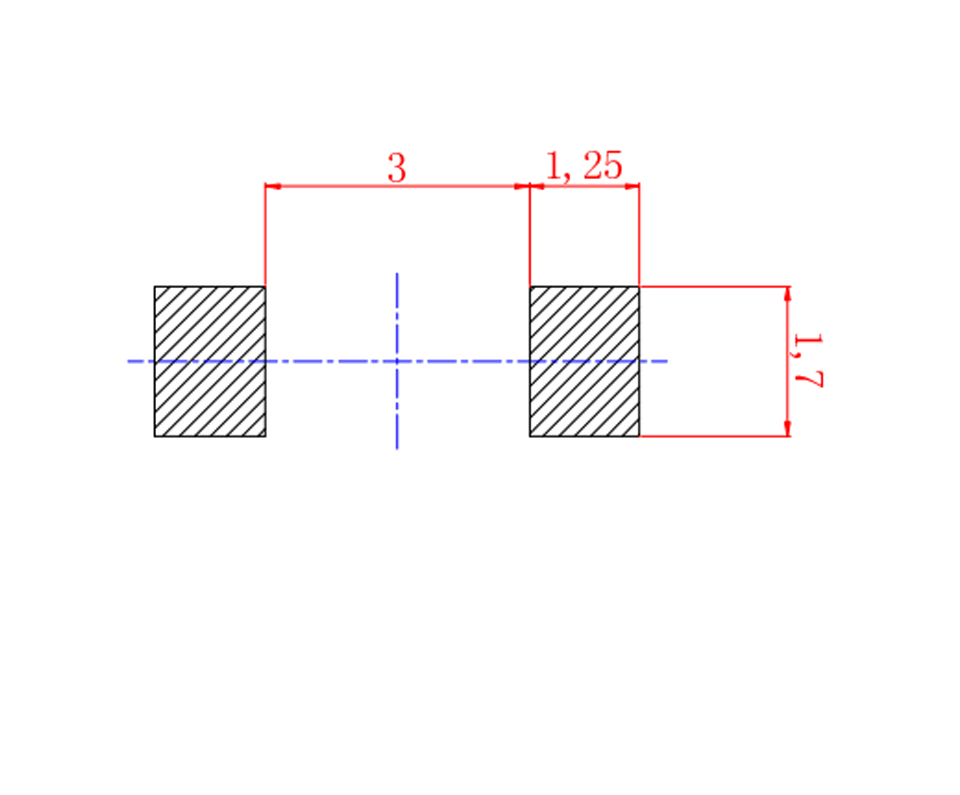

PCB Layout
