TS-T003048-194 13mm Right-Angle USB Vertical DIP Female Receptacle

Inquire Download PDF
PREV：No previous articleNEXT：TS-S013128-0223 L=6.3 USB Front-DIP/Rear-SMT Female Receptacle
Technical Parameters Drawings
Electrical Characteristics:
Rated Current:  1.5A per contact terminal
Rated Voltage:  30V DC
Contact Resistance:  30 mΩ MAX
Dielectric Withstanding Voltage:  500V AC (at Sea Level)
Insulation Resistance:  1000 MΩ MIN
Physical Properties:
Mating/Unmating Force: Connector Mating and Unmating Force
Mating Force:  3.57 kgf (MAX)
Unmating Force:  1.02 kgf (MIN)
Terminal Retention Force: Terminal Retention
1.2 kgf (MIN)
Materials:
Plastic Housing: High-Temperature Thermoplastic
UL 94V-0 PBT (White/Black)
Contacts:  Copper Alloy C2680
Shell:  Copper Alloy C2680 / SPCC
Plating Finish:
Contacts:  Gold plating in the mating area; Tin plating on solder tails
Shell:  Nickel plating

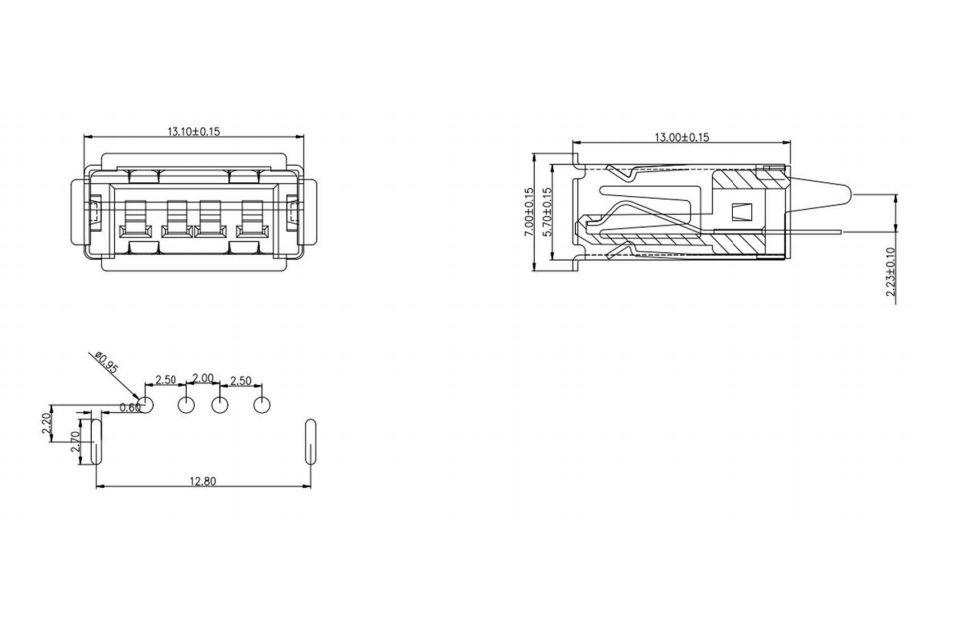

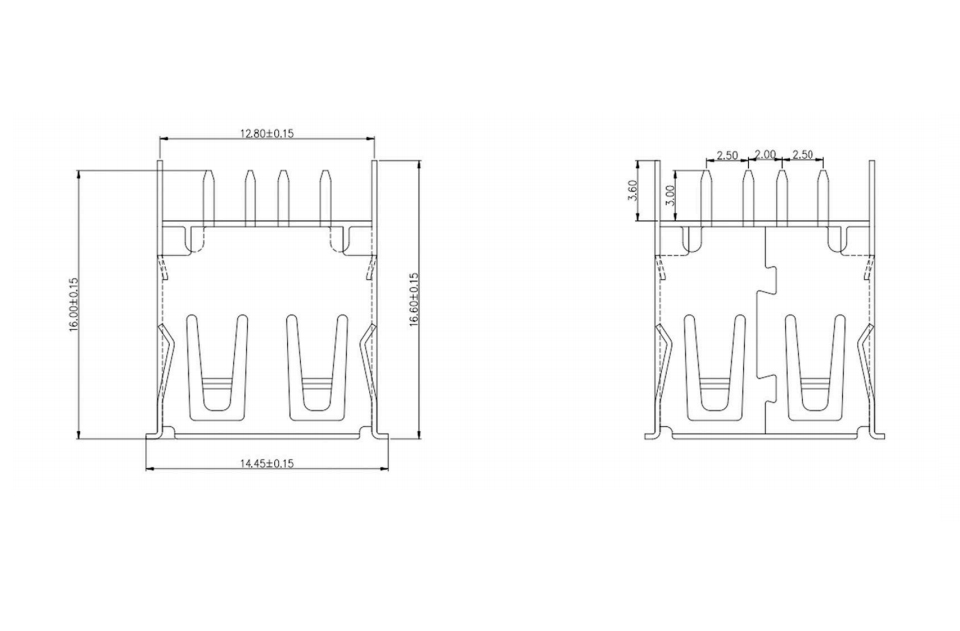

Dimensions Circuit Diagram
PCB Layout
