TS-S013093-194 L=6.8 Type-C Full-SMT Female Receptacle

Inquire Download PDF
PREV：TS-S013076-0223 L=6.8 Type-C Vertical DIP Female ReceptacleNEXT：TS-S013075-0223 L=5.0 Type-C Vertical SMT Female Receptacle
Technical Parameters Drawings
Rated Current:  3A
Contact Resistance:  40mΩ MAX (Initial);50mΩ MAX (After testing)
Insulation Resistance:  100MΩ MIN
Dielectric Withstanding Voltage:  100V AC RMS
Total Insertion Force:  5–20N; (5–20N after durability testing)
Total Extraction Force:  8–20N; (6–20N after durability testing)
Durability: 5,000 cycles
High-Temperature Resistance:  SMT Reflow Soldering (Peak: 260°C +5°C);
The plastic housing must be free of defects such as blistering or melting; discoloration and warping/deformation must remain within tolerance limits.
Solderability Test:  The solder coverage area must be ≥ 95%.
Salt Spray Test:  24 hours MIN
Operating Temperature:  -25°C to +80°C

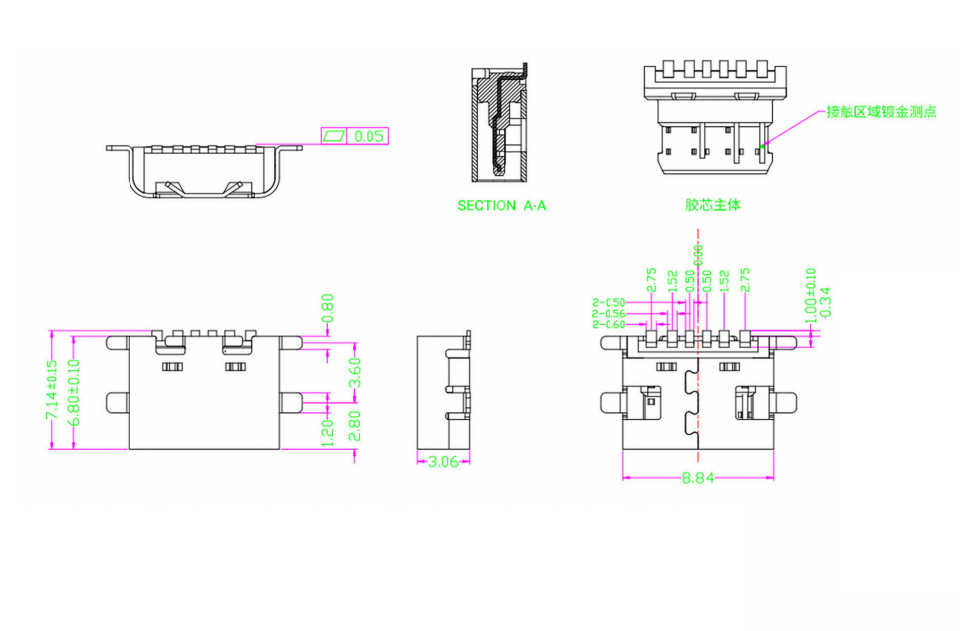

Dimensions Circuit Diagram

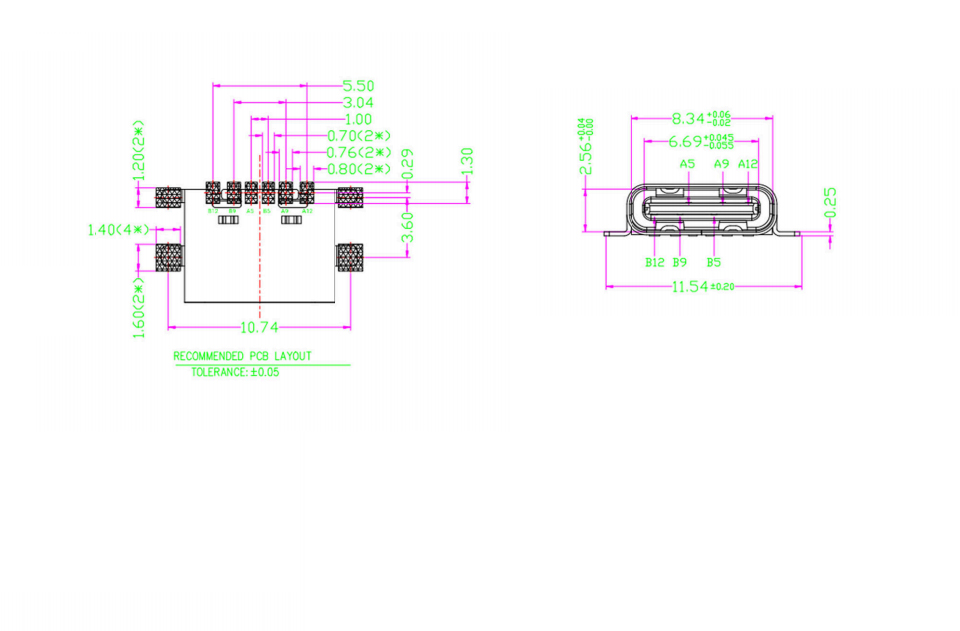

PCB Layout
