TS-L005040A 5.8mm Double-Row Self-Locking Flat-Head Pin-Type Tact Switch

Inquire Download PDF
PREV：TS-K010001 5.8mm 6-Pin Self-Locking Side-Actuated Tact SwitchNEXT：No next article
Technical Parameters Drawings
Key Switch:  Main Technical Specifications
Specification of Self-Locking Switch
Temperature Range:  -40°C to +70°C
Rated Load:  DC 30V, 0.1A
Contact Resistance:  < 100 mΩ
Insulation Resistance:  > 100 MΩ
Withstand Voltage:  AC 250V (50Hz) for 1 minute
Operation Force:  180g ± 50g
Life Expectancy:  10,000 cycles

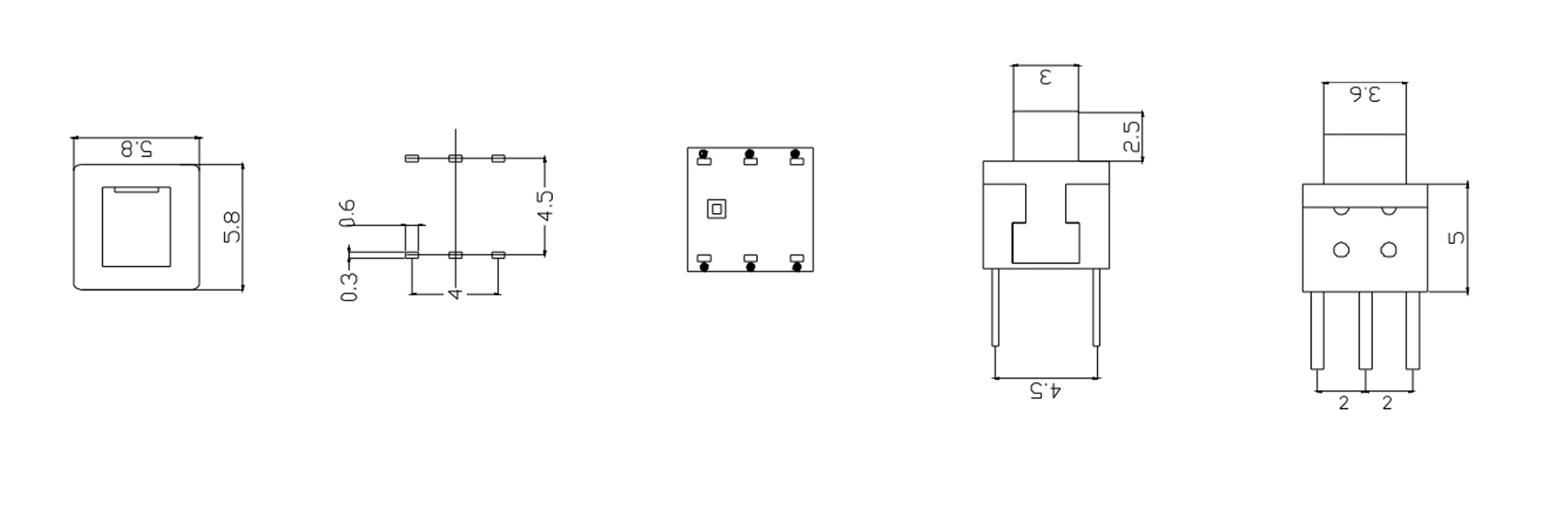

Dimensions
