TS-K010129 5.8mm Single-Row Self-Locking Tact Switch

Inquire Download PDF
PREV：TS-K010012 5.8mm Double-Row High-Head Self-Locking SMD Tact SwitchNEXT：TS-K010062 8x8 Non-Locking Tact Switch
Technical Parameters Specification Drawings
Key Switch:  Main Technical Specifications
Specification of Self-Locking Switch
Temperature Range:  -40°C to +70°C
Rated Load:  DC 30V, 0.1A
Contact Resistance:  < 100 mΩ
Insulation Resistance:  > 100 MΩ
Withstand Voltage:  AC 250V (50Hz) for 1 minute
Operation Force:  180g ± 50g
Life Expectancy:  10,000 cycles
Contact resistance:  <30 mΩ
Insulation resistance:  >100 MΩ
Dielectric strength:  AC 250 V (50 Hz)/min
Actuation force:  180 ± 50 g
Service life:  10,000 cycles

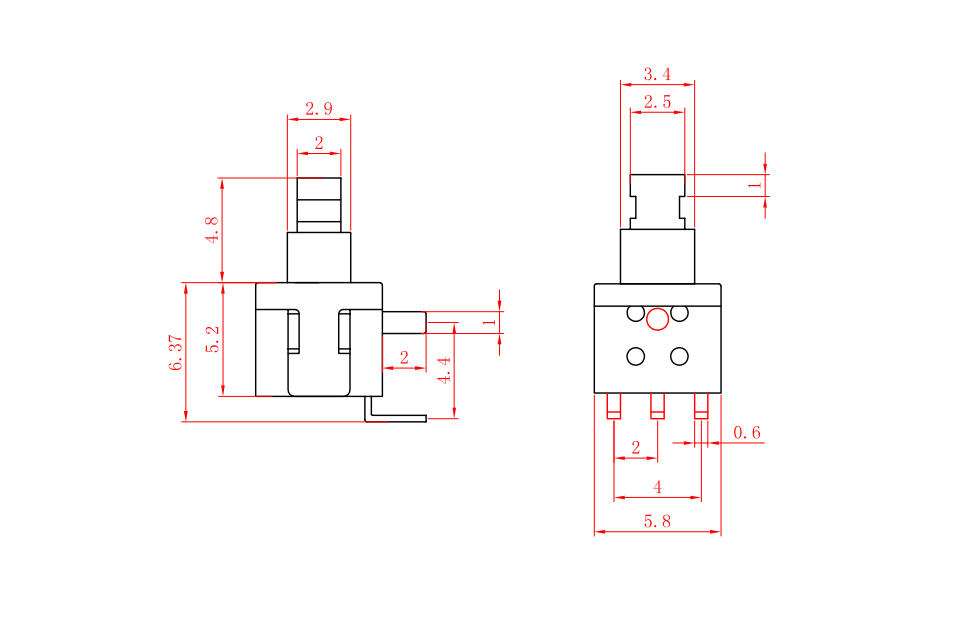

Dimensions Circuit Diagram

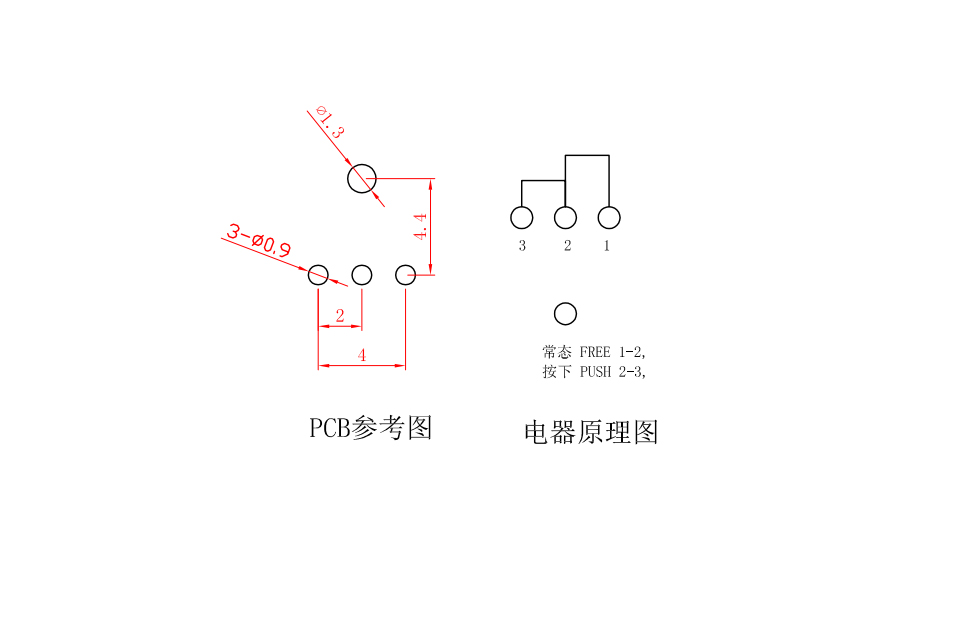

PCB Layout
