TS-K010113 7x7 Double-Row Flat-Head Self-Locking Tact Switch

Inquire Download PDF
PREV：TS-K010062 8x8 Non-Locking Tact SwitchNEXT：TS-K010204 7x7 Single-Row High-Head Self-Locking Tact Switch
Technical Parameters Drawings
Key Switch:  Main Technical Specifications
Specification of Self-Locking Switch
Temperature Range:  -40°C to +70°C
Rated Load:  DC 30V, 0.1A
Contact Resistance:  < 100 mΩ
Insulation Resistance:  > 100 MΩ
Withstand Voltage:  AC 250V (50Hz) for 1 minute
Operation Force:  180g ± 50g
Life Expectancy:  10,000 cycles

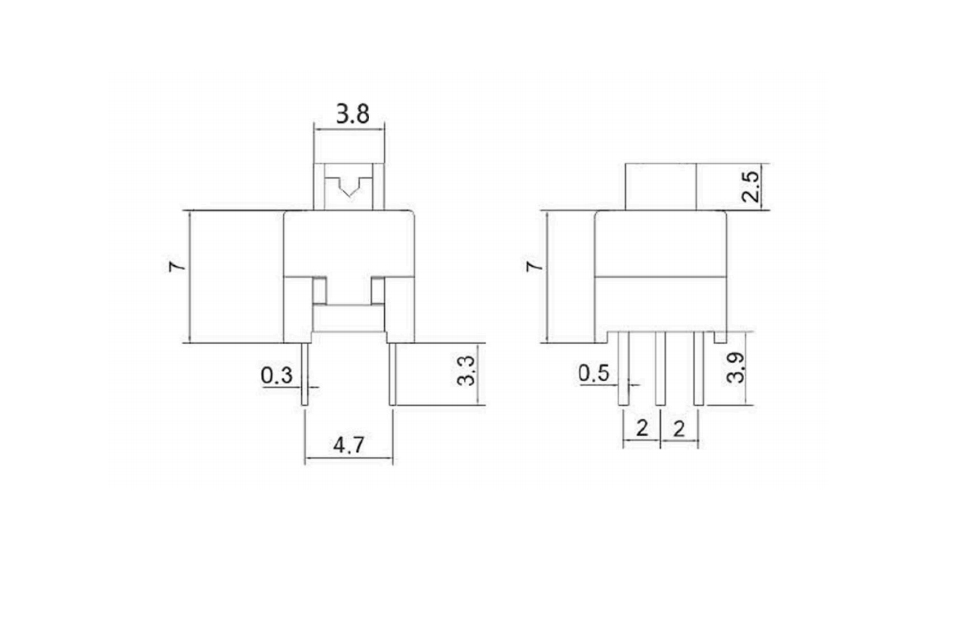

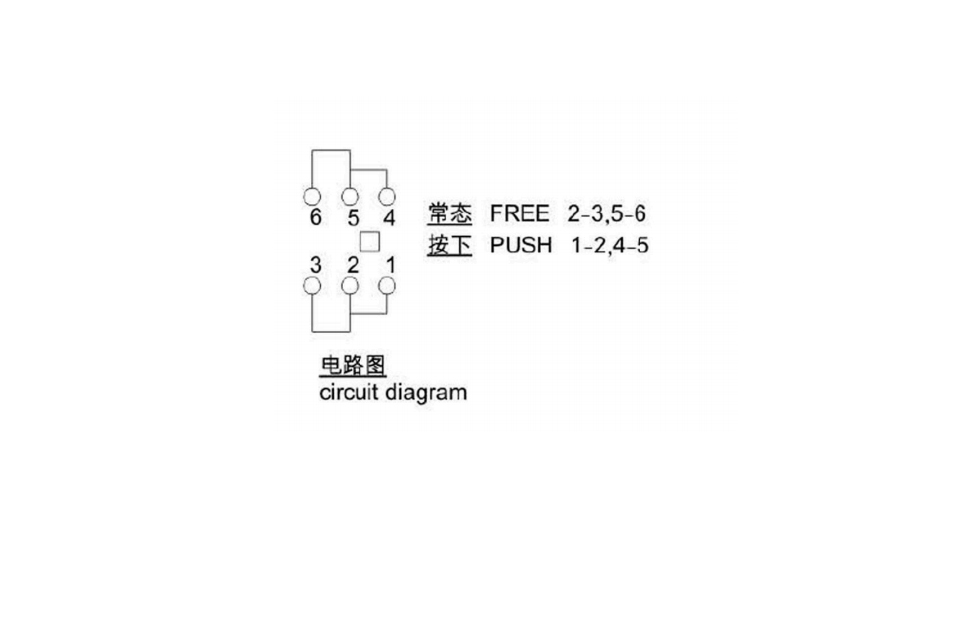

Dimensions Circuit Diagram
PCB Layout
