Technical Parameters

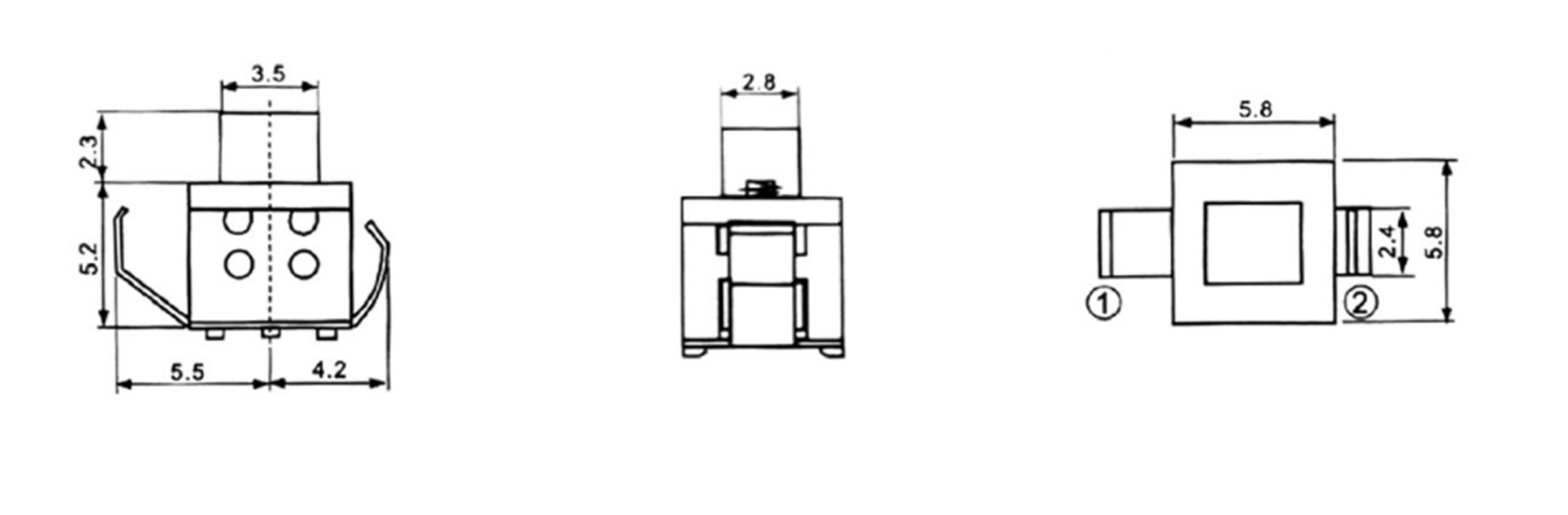

Drawings
| Key Switch: | Main Technical Specifications Specification of Self-Locking Switch |
| Temperature Range: | -40°C to +70°C |
| Rated Load: | DC 30V, 0.1A |
| Contact Resistance: | < 100 mΩ |
| Insulation Resistance: | > 100 MΩ |
| Withstand Voltage: | AC 250V (50Hz) for 1 minute |
| Operation Force: | 180g ± 50g |
| Life Expectancy: | 10,000 cycles |
| Dimensions |
 |
