TS-Q005335 2.54mm Pitch Dual Row Right-Angle Female Header, 2 x 4 Pins

Inquire Download PDF
PREV：No previous articleNEXT：TS-Q005347 2.0mm Pitch Single Row Straight Pin Header, 1 x 4 Pins

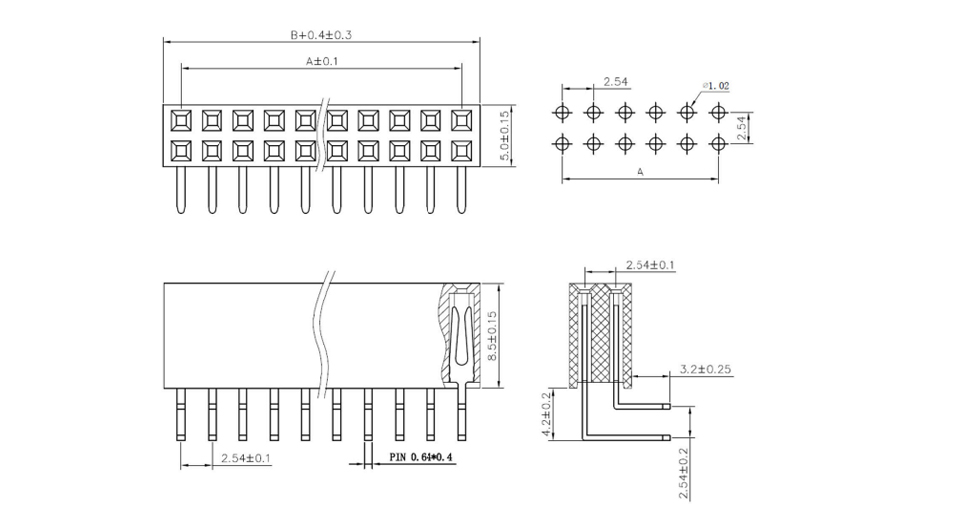

Technical Parameters Drawings
Current Rating:  3 Amps
Insulation Resistance: 1000MΩ Min
Contact Resistance: 20m Ω Max
Withstanding Voltage:  AC 1000V
Operation Temperature: -40° to+105°
Contact Material:  Brass
Standard:  PA6T
Insrlator Material:  Polyester(UL 94V-0)
Contact Plating:  Gold Flash
Max. Processing Temp:  240° C for30-60seconds
(260° C for 5 seconds)
Dimensions
