TS-Q027002-134 4.2mm Pitch Straight Pin Connector

Inquire Download PDF
PREV：No previous articleNEXT：TS-Q002321-134 4.2mm Pitch Right-Angle Pin Connector
Technical Parameters Specification Drawings
Technical Specifications
Number of Poles:  2–12
Applicable Wire Gauge:  AWG #18–#22
Applicable PCB Thickness:  1.7 mm
Temperature Range:  -25°C to +85°C
Voltage Rating:  300V AC/DC
Current Rating:  7.5A
Contact Resistance:  ≤0.015Ω
Insulation Resistance:  ≥1000MΩ
Withstand Voltage:  1000V AC / 1 min
Holes Type Dimensions mm
A B
2  5569-2*1A 5.40
4  5569-2*2A 4.20  9.60
6  5569-2*3A 8.40  13.80
8  5569-2*4A 12.60  18.00
10  5569-2*5A 16.80  22.20
12  5569-2*6A 21.00  26.40
14  5569-2*7A 25.20  30.60
16  5569-2*8A 29.40  34.80
18  5569-2*9A 33.60  39.00
20  5569-2*10A 37.80  43.20
22  5569-2*11A 42.00  47.40
24  5569-2*12A 46.00  51.60

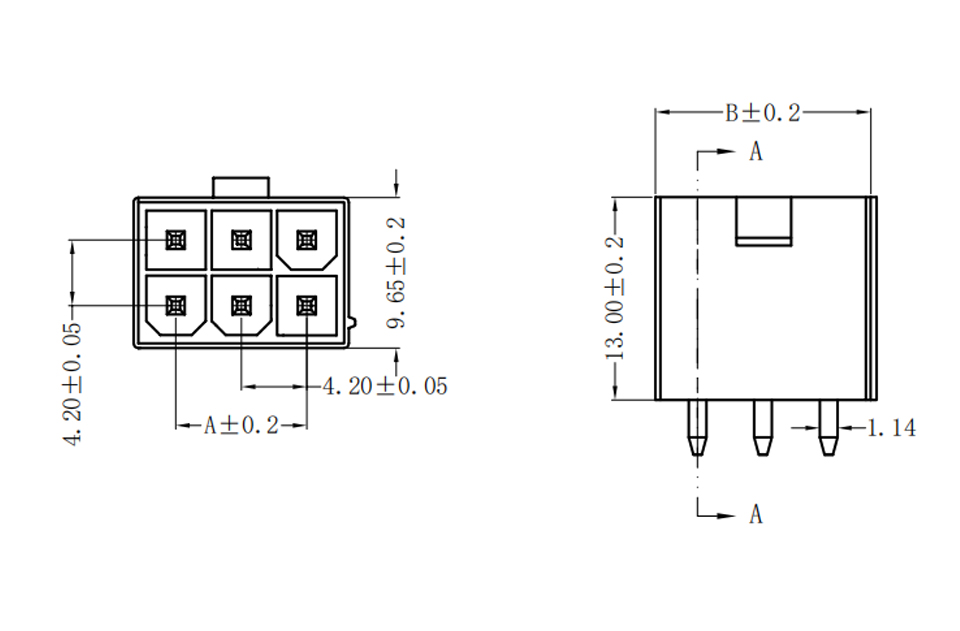

Dimensions Circuit Diagram

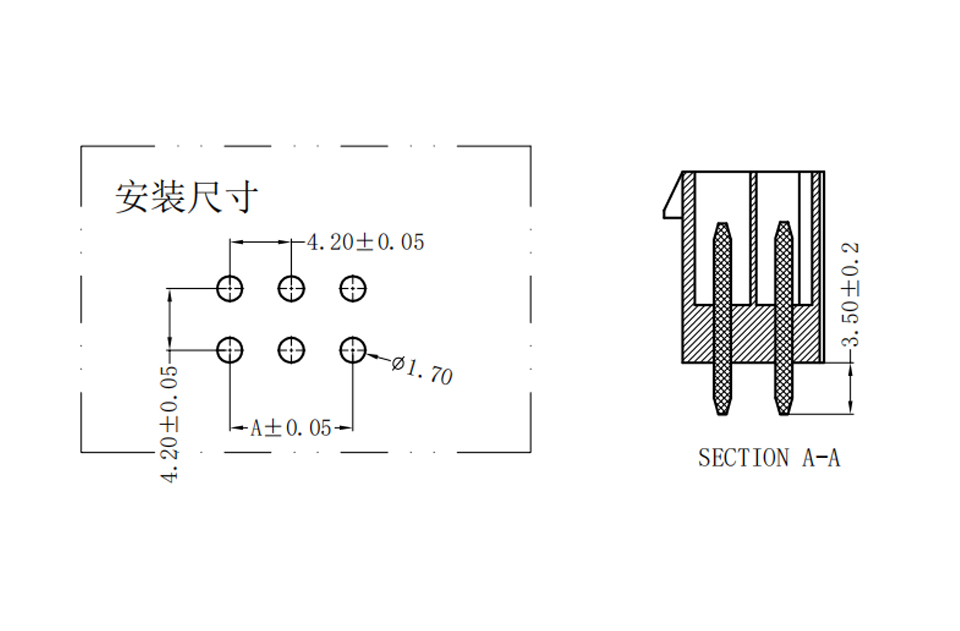

PCB Layout
