TS-Q002124-184 2.0mm Pitch Vertical SMT Pin Header

1. The product surface must be clean and free from rust, oxidation, cracks, core defects, burrs,
and other mechanical damage;
2. Plastic material: high-temperature-resistant polyester; colour: natural;
3. Contact pins: brass, tin-plated;
4. Solder tabs: brass, tin-plated;

Inquire Download PDF
PREV：TS-Q002133A-184 2.0mm Pitch Right-Angle SMT Pin HeaderNEXT：CO-A008032-134 1.5mm Pitch Straight Pin Connector
Technical Parameters Specification Drawings
Pitch:  2.0mm
Rated Current:  2A AC, DC
Rated Voltage:  100V AC, DC
Temperature Range:  -25°C to +85°C
Applicable Wires:  AWG #24–#32
Applicable PC Board Thickness:  0.8mm–1.6mm
Number of cores A B   C
2  2.0  7.9  4.75
3  4.0  9.9  6.75
4  6.0  11.9  8.75
5  8.0  13.9  10.75
6  10.0  15.9  12.75
7  12.0  17.9  14.75
8  14.0  19.9  16.75
9  16 21.9  18.75
10  18.0  23.9  20.75
11  20.0  25.9  22.75
12  22.0  27.9  24.75
13  24.0  29.9  26.75
14  26.0  31.9  28.75
15  28.0  33.9  30.75
16  30.0  35.9  32.75

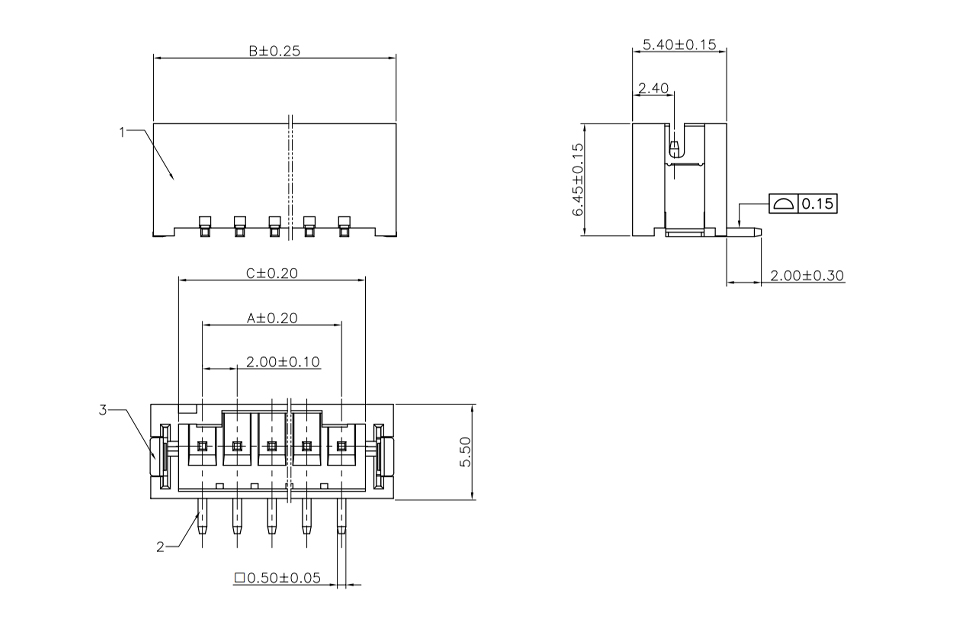

Dimensions Circuit Diagram

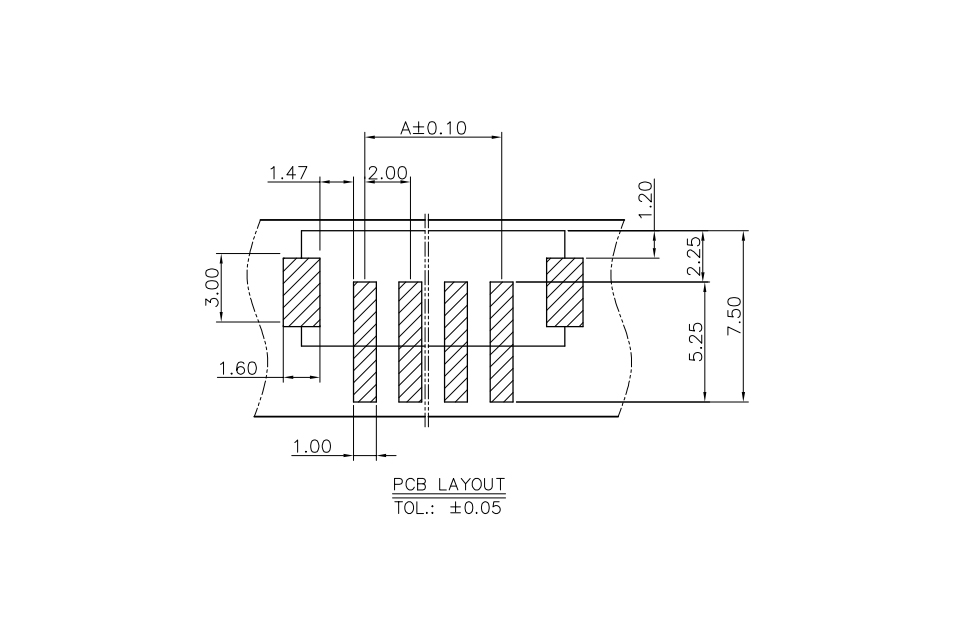

PCB Layout
