I Series 6x6 Middle Two-Pin / 12x12 Positive Pressure Tactile Switch
Inquire
Download PDF
Technical Parameters
Drawings
| Rated specifications: | DC 12V 50mA |
| Contact resistance: | 100mΩ max |
| Insulation resistance: | 100MΩ min |
| Dielectric strength: | AC 250V 50Hz |
| Travel: | Centre 0.15±0.1mm |
| Actuation force: | Centre 260±70gf |
| Lifespan: | 100,000 |

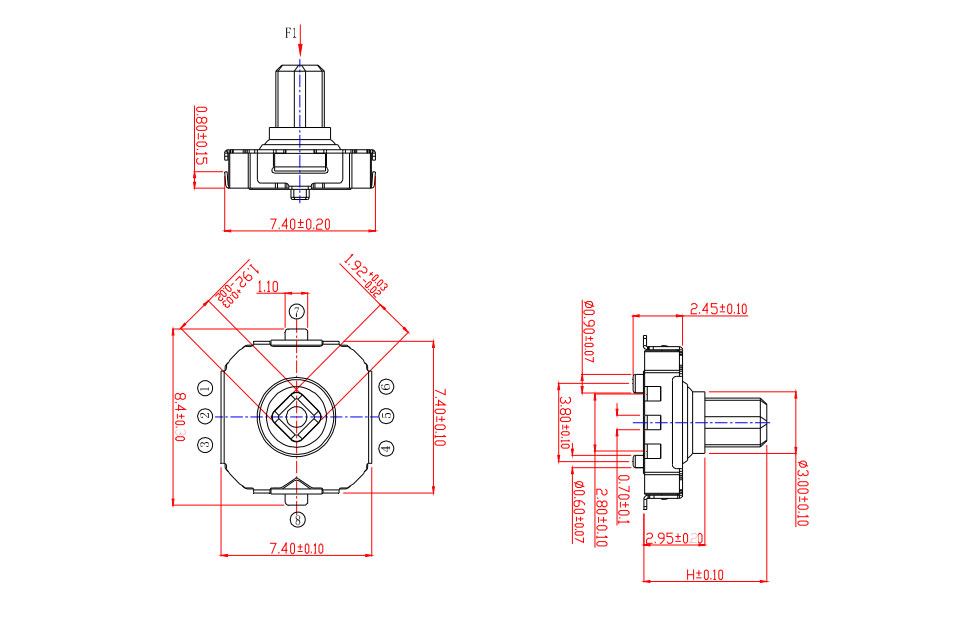

| Dimensions | Circuit Diagram |

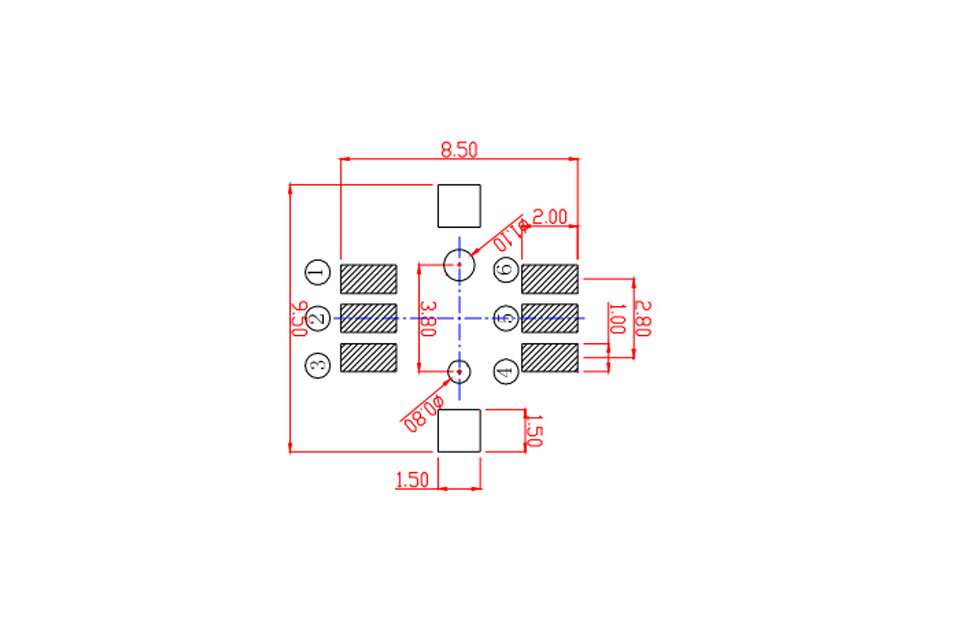

| PCB Layout | |
 |
 |
