I Series 6x6 Middle Two-Pin / 12x12 Positive Pressure Tactile Switch

TS-I006028 12*12 SMD Waterproof Tactile Switch

Inquire Download PDF

PREV：TS-I011001 12*12 Aircraft-Head Tactile Switch NEXT：TS-I007005A 12*12 Extended-Leg SMD Tactile Switch

Technical Parameters Drawings

Rated current:	50 mA, 12 V DC
Contact resistance:	100 mΩ
Travel:	0.4± 0.1mm
Insulation resistance:	100 MΩ
Withstand voltage:	250 V, 50 Hz, 1 min
Water resistance rating:	IP67

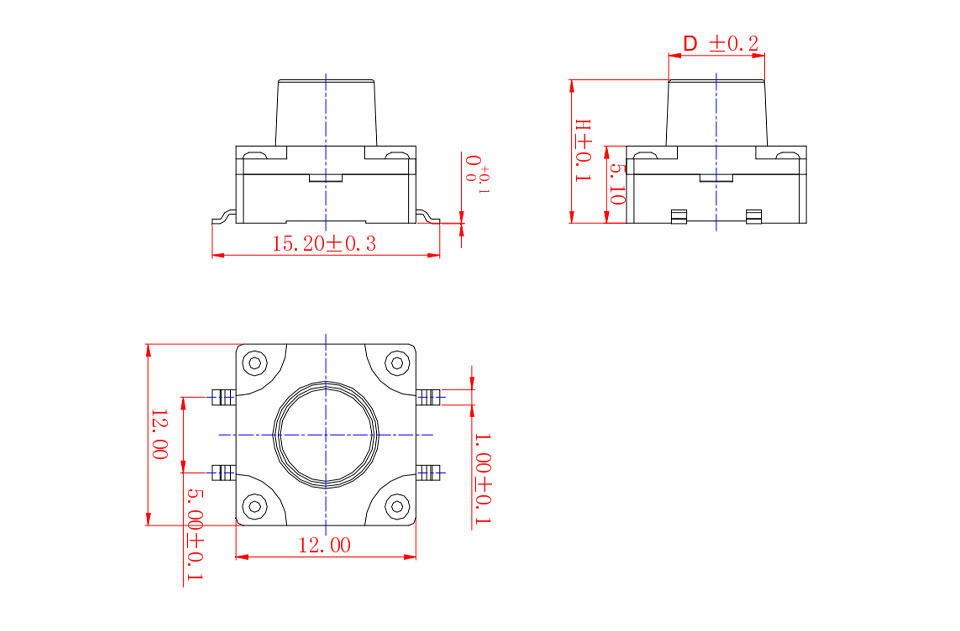

Dimensions	Circuit Diagram

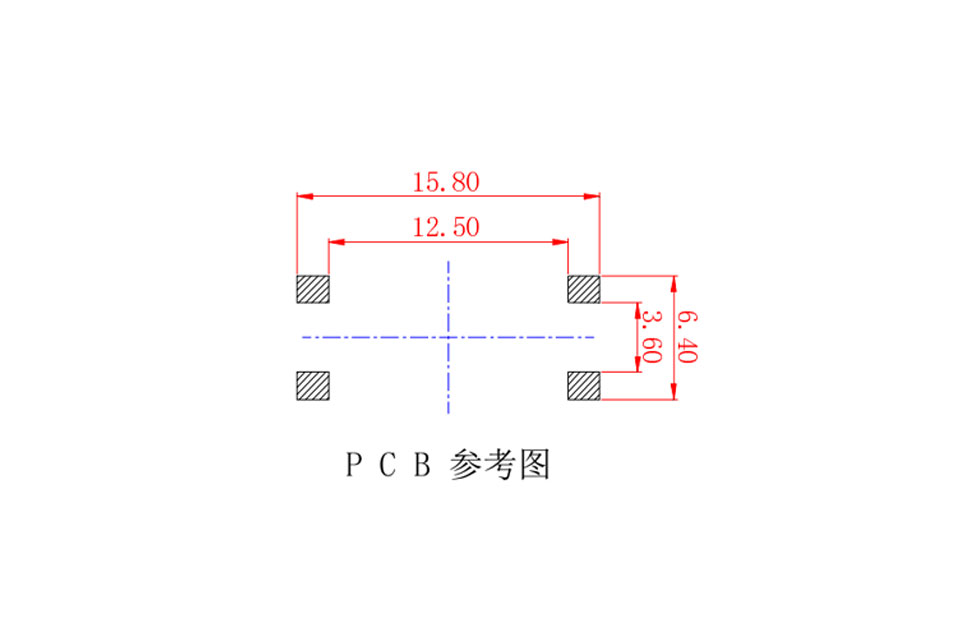

Dimensions	PCB Layout
