Technical Parameters

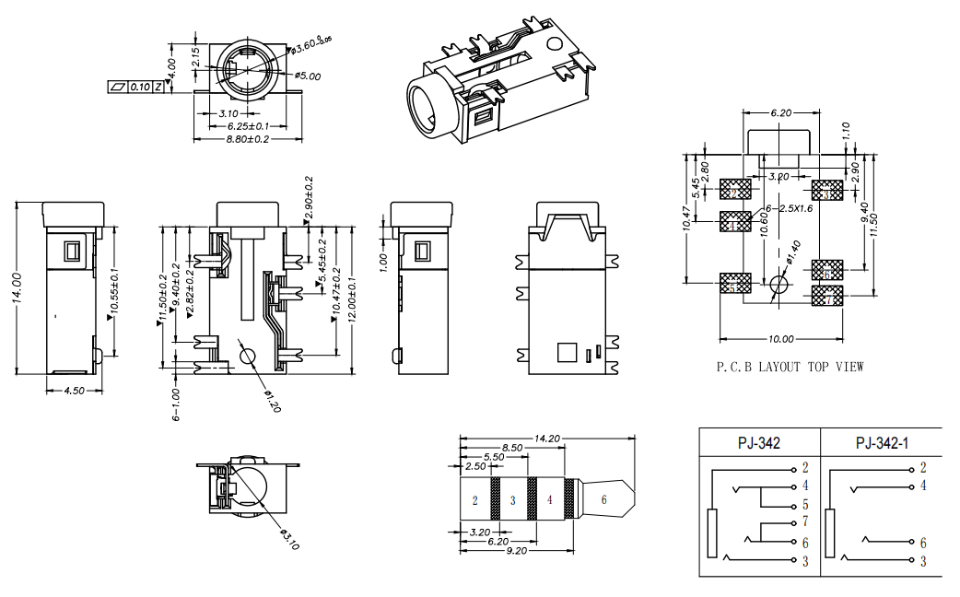

Drawings
| Rated Load | DC 30V\0.5A |
| Contact Resistance | ≤0.03Ω |
| Insulation Resistance | ≥100ΜΩ |
| Withstand Voltage | AC500V（50Hz）/min |
| Insertion & Withdrawal Force | 3-20N |
| Operating Temperature Range | -30-70℃ |
| Durability | 5000cycles min |
| Circuit Diagram |
| PCB Layout |
 |
