TS-H005001 6*6 Bottom-Bracket Waterproof Tactile Switch

Inquire Download PDF
PREV：TS-H003001A 6*6 Bottom-Bracket Tactile SwitchNEXT：TS-H002009 6*6 Semi-Enclosed Bracket Tactile Switch
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.3± 0.1mm
Insulation resistance:  100 MΩ
Withstand voltage:  250 V, 50 Hz, 1 min

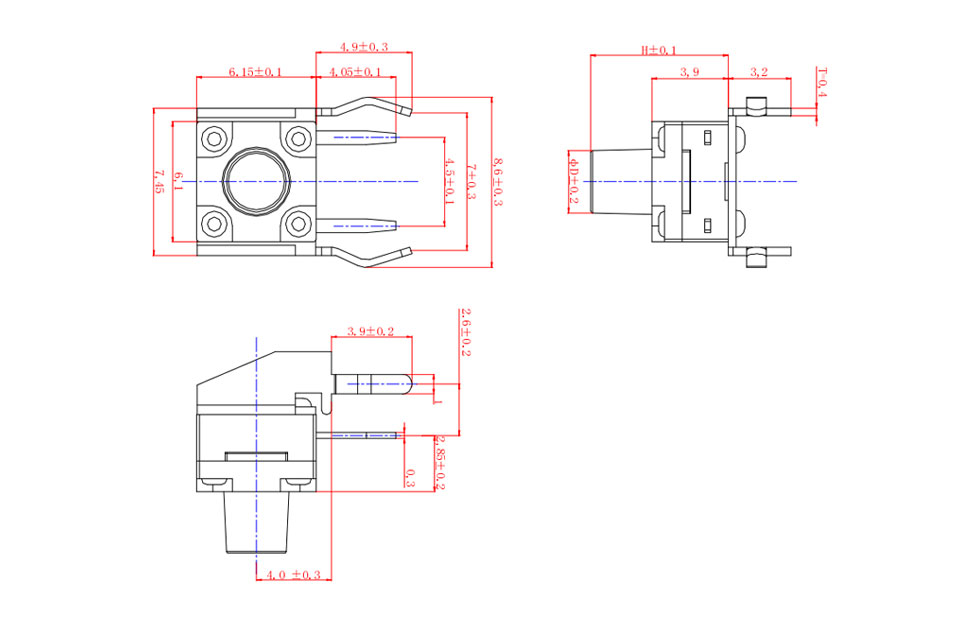

Dimensions Circuit Diagram

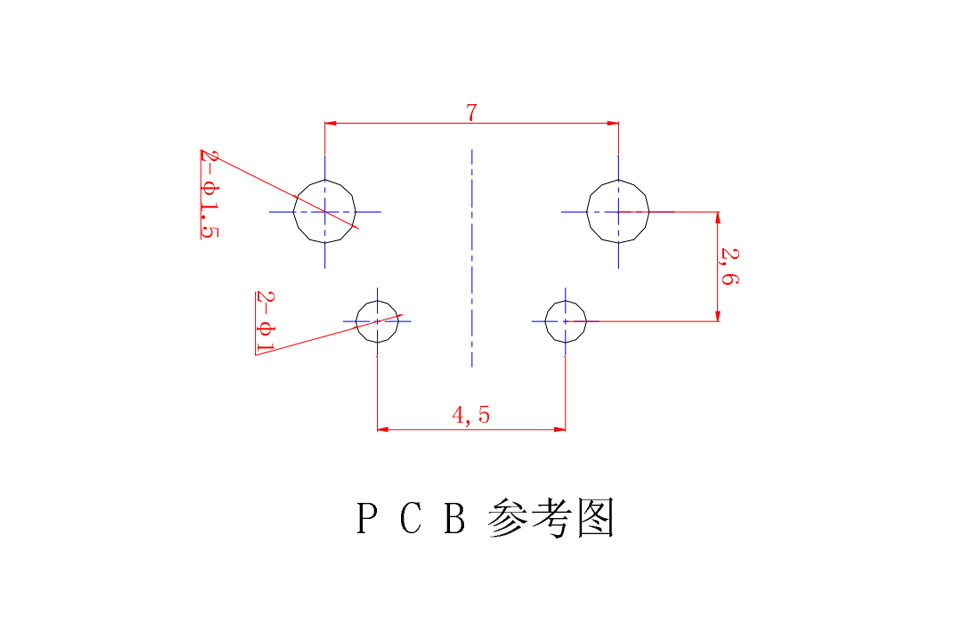

PCB Layout
