Home · Products · Tactile Switch · H Series Bracket Tactile Switch · TS-H002223 6*6 Short-Leg Bracket Tactile Switch
  • TS-H002223 6*6 Short-Leg Bracket Tactile Switch
  • TS-H002223 6*6 Short-Leg Bracket Tactile Switch
H Series Bracket Tactile Switch

TS-H002223 6*6 Short-Leg Bracket Tactile Switch

Inquire Download PDF
PREV：No previous articleNEXT：TS-H003001A 6*6 Bottom-Bracket Tactile Switch
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.25± 0.1mm
Insulation resistance:  100 MΩ
Withstand voltage:  250 V, 50 Hz, 1 min

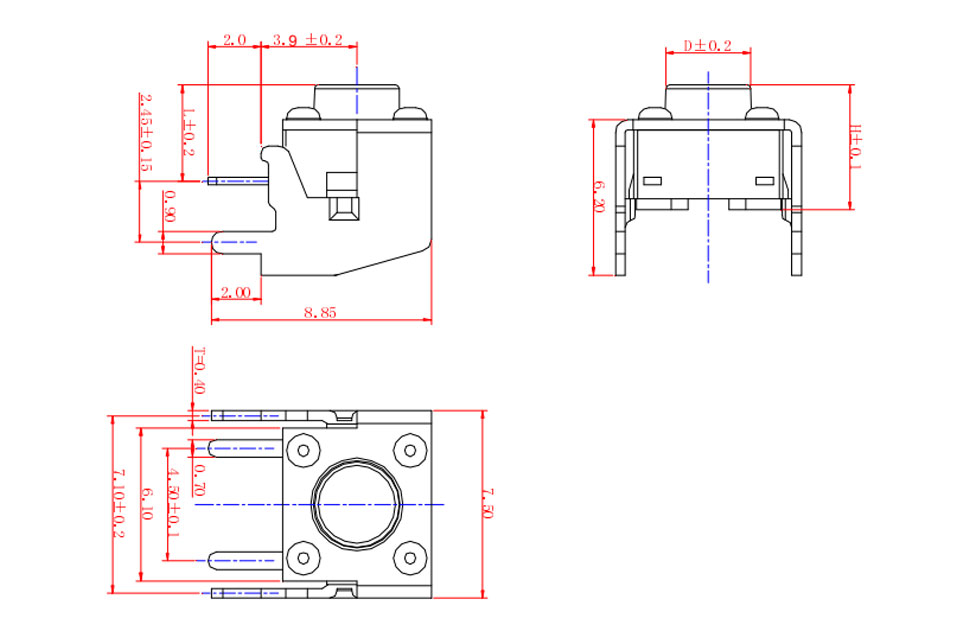

Dimensions Circuit Diagram

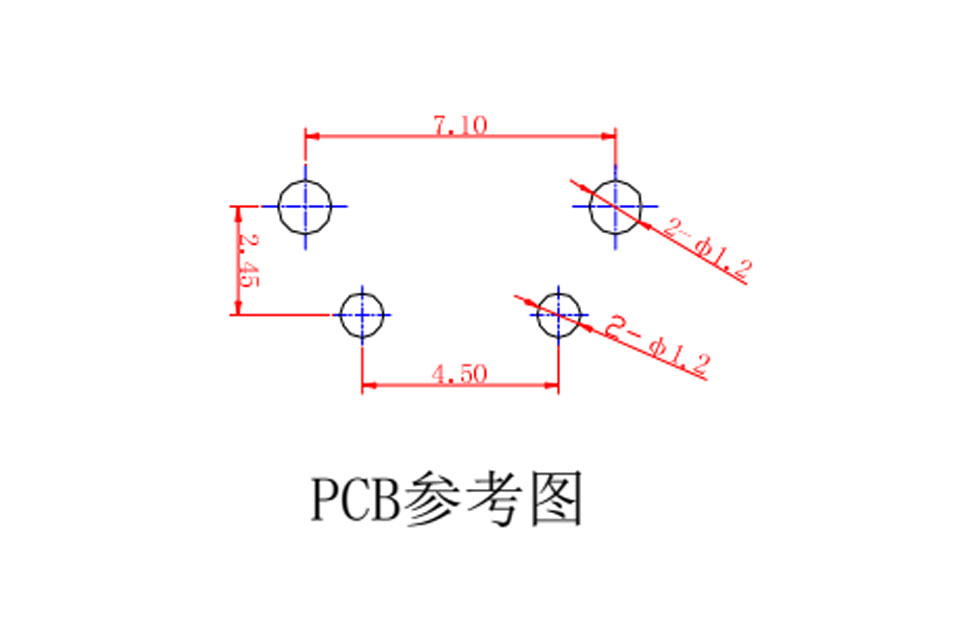

PCB Layout
