  • TS-G007004 6.2*2.4 Extended U-Leg Silicone Tactile Switch
  • TS-G007004 6.2*2.4 Extended U-Leg Silicone Tactile Switch
G Series 6.2x6.2 Silicone Tactile Switch

TS-G007004 6.2*2.4 Extended U-Leg Silicone Tactile Switch

Inquire Download PDF
PREV：TS-G002005 6.2x6.2 Encapsulated Pins Silicone Tactile SwitchNEXT：TS-G003308 6.2x6.2 Blue Actuator Black Base Normally Closed Silicone Tactile Switch
Technical Parameters Drawings
Rated current: 50mA 12V DC
Contact resistance: 100 mΩ
Actuation force: 60±20 gf
Travel: 0.2±0.1 mm
Insulation resistance: 100 MΩ
Lifespan: 300,000 cycles

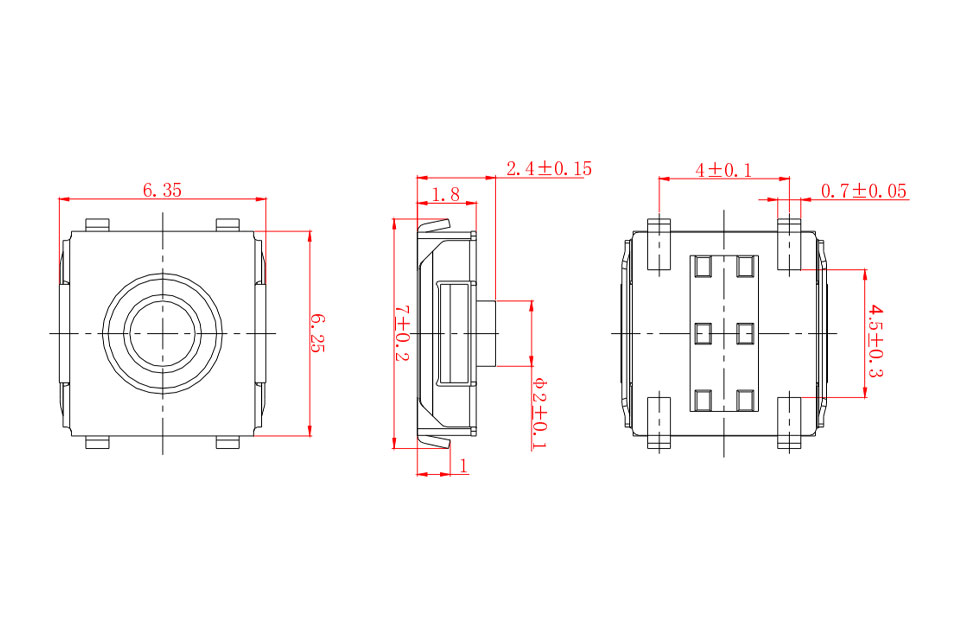

Dimensions Circuit Diagram

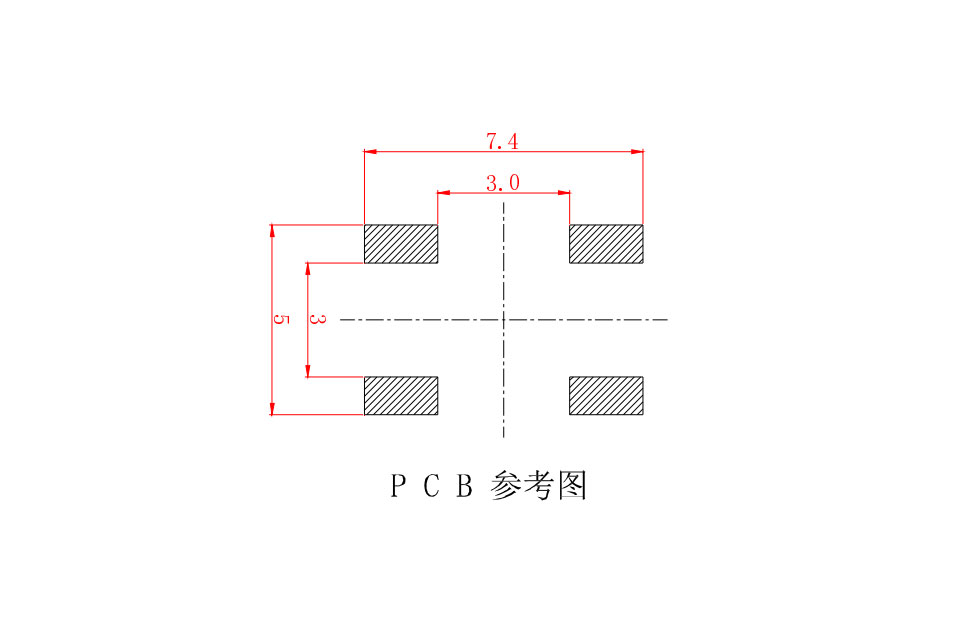

PCB Layout
