  • TS-G005005 4x6x2.5 Blue Button Normally Closed Silicone Tactile Switch
  • TS-G005005 4x6x2.5 Blue Button Normally Closed Silicone Tactile Switch
G Series 6.2x6.2 Silicone Tactile Switch

TS-G005005 4x6x2.5 Blue Button Normally Closed Silicone Tactile Switch

Inquire Download PDF
PREV：TS-G003308 6.2x6.2 Blue Actuator Black Base Normally Closed Silicone Tactile SwitchNEXT：TS-G003052 6.2x6.2 Silicone SMD Tactile Switch
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.3± 0.1mm
Insulation resistance:  100 MΩ

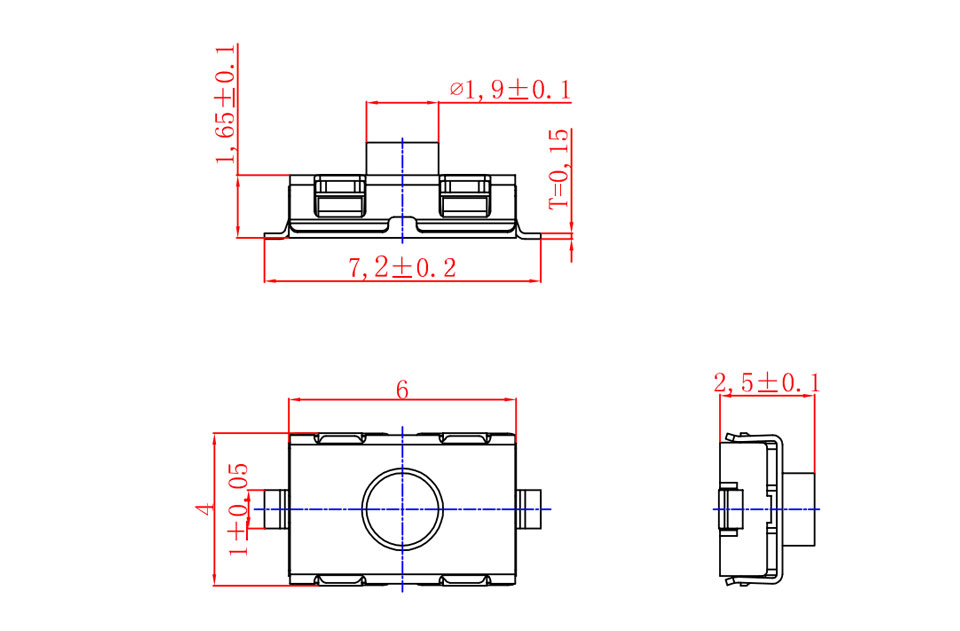

Dimensions Circuit Diagram

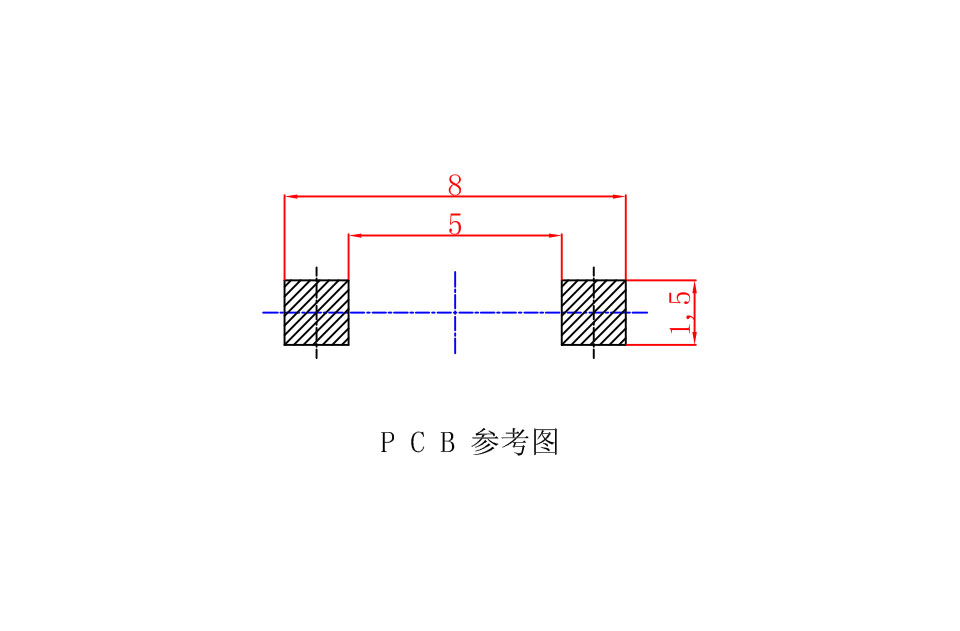

PCB Layout
