TS-S012019A 0.5mm Pitch, Slide-Lock Type, Top Contact, 20-Pin FPC/FFC Connector

Inquire Download PDF
PREV：No previous articleNEXT：TS-Q002108 0.5mm Pitch, Flip-Lock Horizontal Type, Bottom Contact (Height 2.0mm), 24-Pin FPC/FFC Connector
Technical Parameters Drawings
The surface of the moulded part should be smooth, free from burrs, and show no signs of significant shrinkage, defects or cracks.
Temperature range:  -25°C to 85°C.
Rated voltage:  50 V, AC/DC (equivalent).
Contact resistance:  <0.03 Ω.
Insulation resistance:  >500 MΩ.

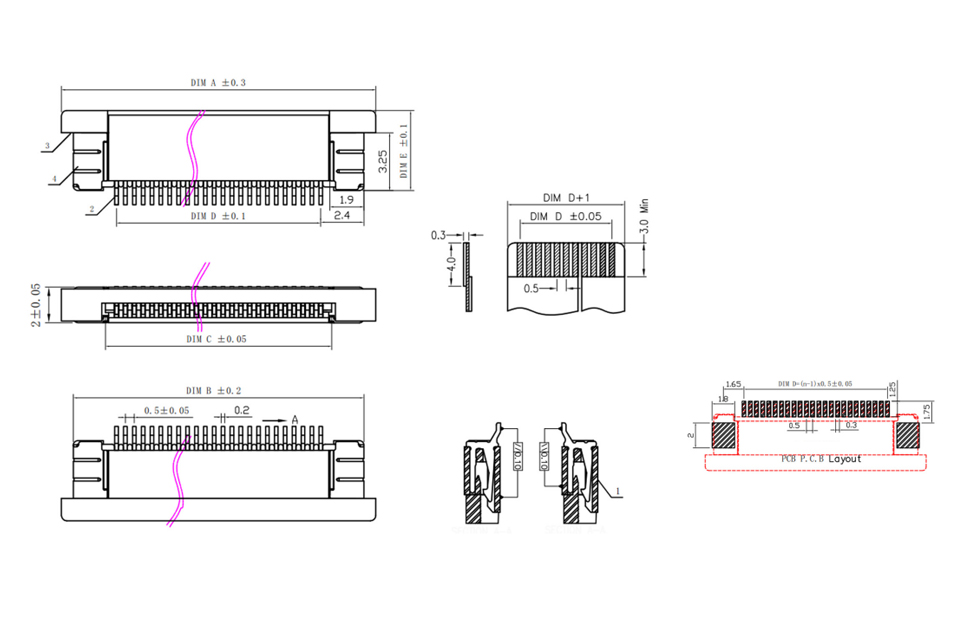

Dimensions
