  • TS-F011030A 6x6x4.1 Yellow-Head Silicone Tactile Switch
  • TS-F011030A 6x6x4.1 Yellow-Head Silicone Tactile Switch
F Series Waterproof Tactile Switch

TS-F011030A 6x6x4.1 Yellow-Head Silicone Tactile Switch

Inquire Download PDF
PREV：TS-F011007A 8.5x8.5 Transparent-Head/AG Silicone Tactile SwitchNEXT：TS-F007092 12x12 Square-Head SMD Tactile Switch
Technical Parameters Drawings
Rated current:  50mA 16VDC
Contact resistance:  100 mΩ
Actuation force:  350±70 gf
Travel:  0.72±0.3 mm
Insulation resistance:  100 MΩ
Lifespan:  200,000 cycles

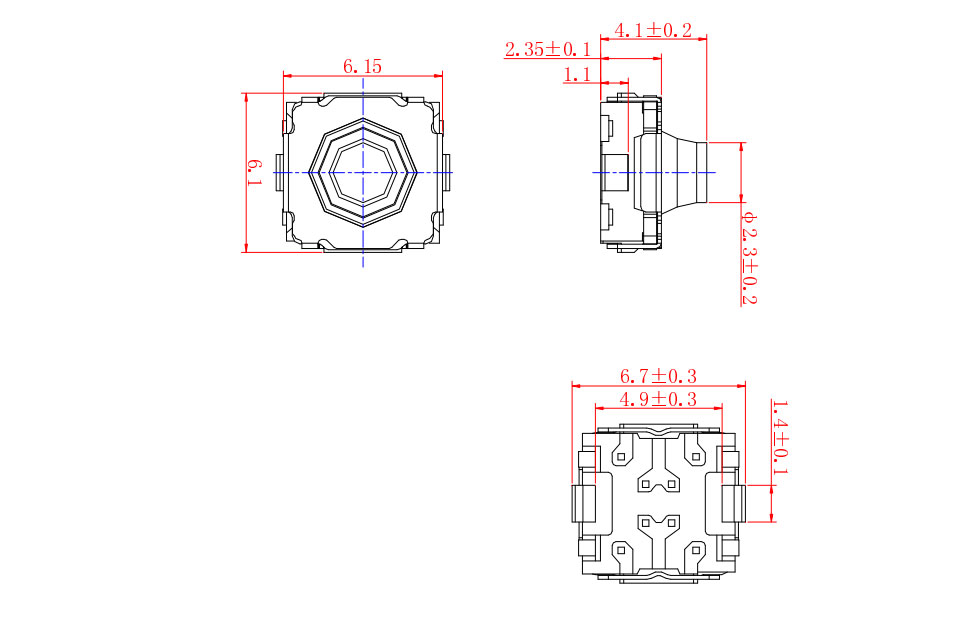

Dimensions Circuit Diagram

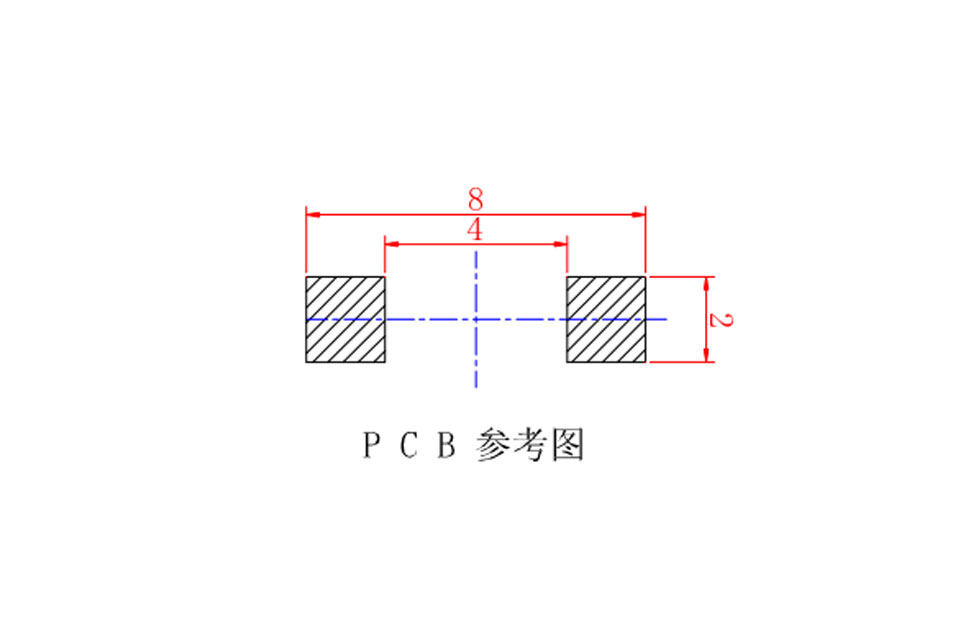

PCB Layout
