F Series Waterproof Tactile Switch
Inquire
Download PDF
Technical Parameters
Drawings
| Rated current: | 50mA 12VDC |
| Contact resistance: | 100 milliohms |
| Actuation force: | 300±100 gf |
| Travel: | 0.5±0.3mm |
| Insulation resistance: | 100 megohms |
| Lifespan: | 1 million cycles |

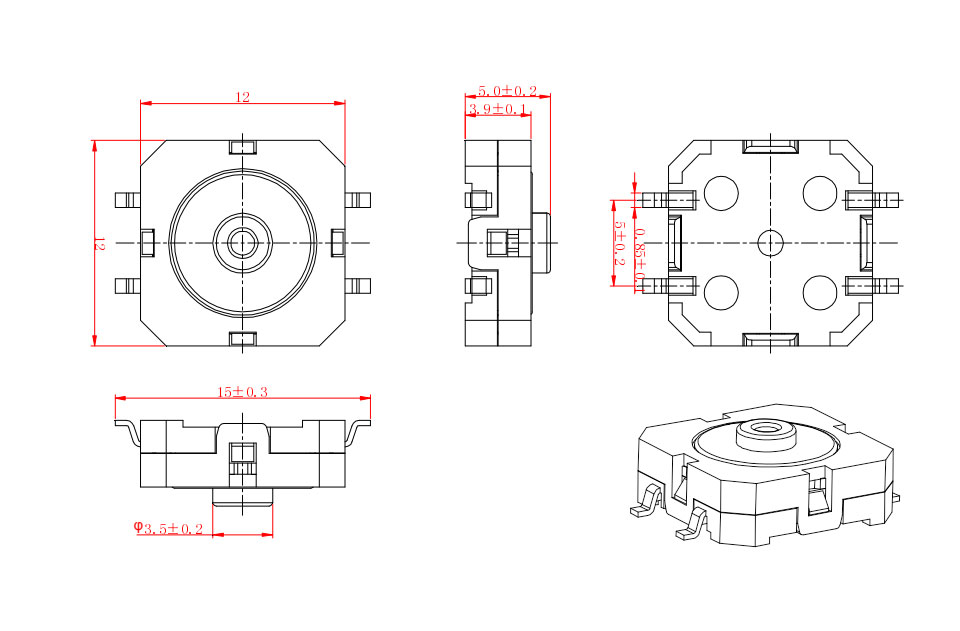

| Dimensions | Circuit Diagram |

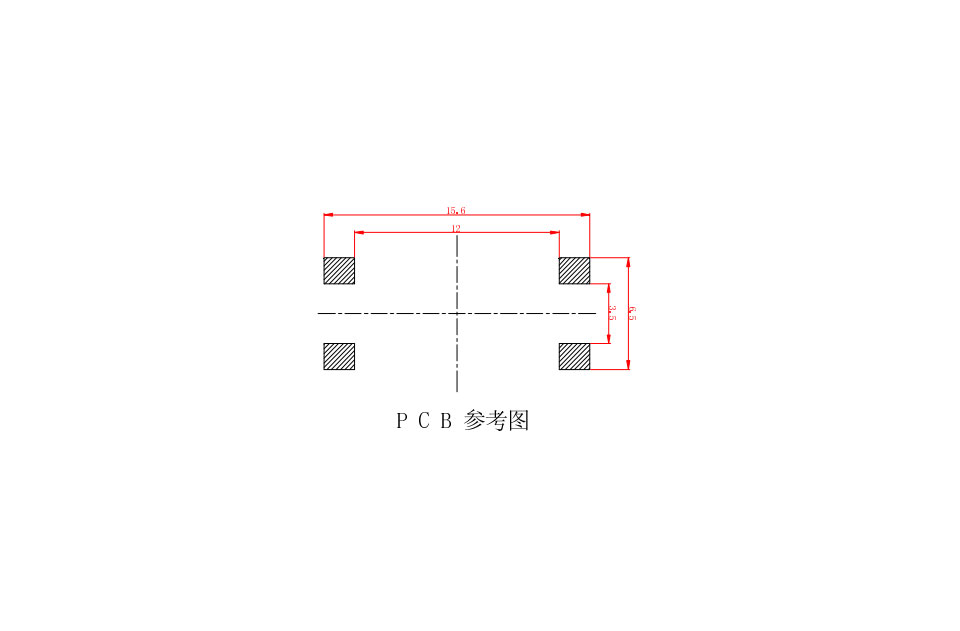

| PCB Layout | |
 |
 |
