F Series Waterproof Tactile Switch
Inquire
Download PDF
Technical Parameters
Drawings
| Rated current: | 50 mA, 12 V DC |
| Contact resistance: | 50m Ω max |
| Travel: | 0.25±0.1mm |
| Insulation resistance: | 100 MΩmin |
| Water resistance rating: | IP67 |

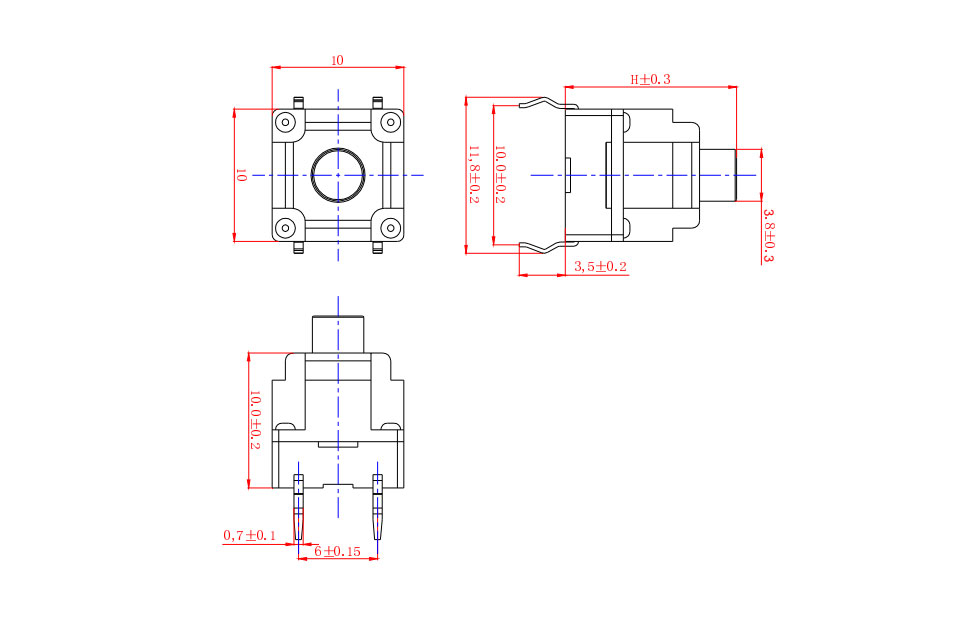

| Dimensions | Circuit Diagram |

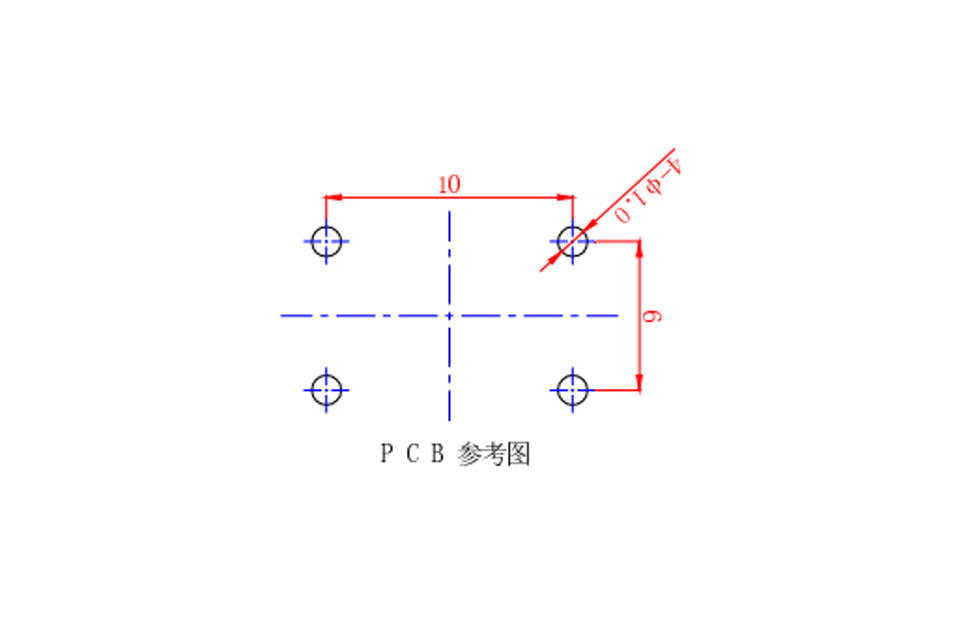

| PCB Layout | |
 |
 |
