Home · Products · Tactile Switch · E Series Two/Three Legs Tactile Switch · TS-E003025A 4.5x4.5 Side-3-Pin Tactile Switch
  • TS-E003025A 4.5x4.5 Side-3-Pin Tactile Switch
  • TS-E003025A 4.5x4.5 Side-3-Pin Tactile Switch
E Series Two/Three Legs Tactile Switch

TS-E003025A 4.5x4.5 Side-3-Pin Tactile Switch

Inquire Download PDF
PREV：TS-E006069A 6x6 Side-3-Pin Tactile SwitchNEXT：TS-E001006 6x6 Side-2-Pin Tactile Switch
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.15± 0.05mm
Insulation resistance:  100 MΩ
Withstand voltage:  250 V, 50 Hz, 1 min

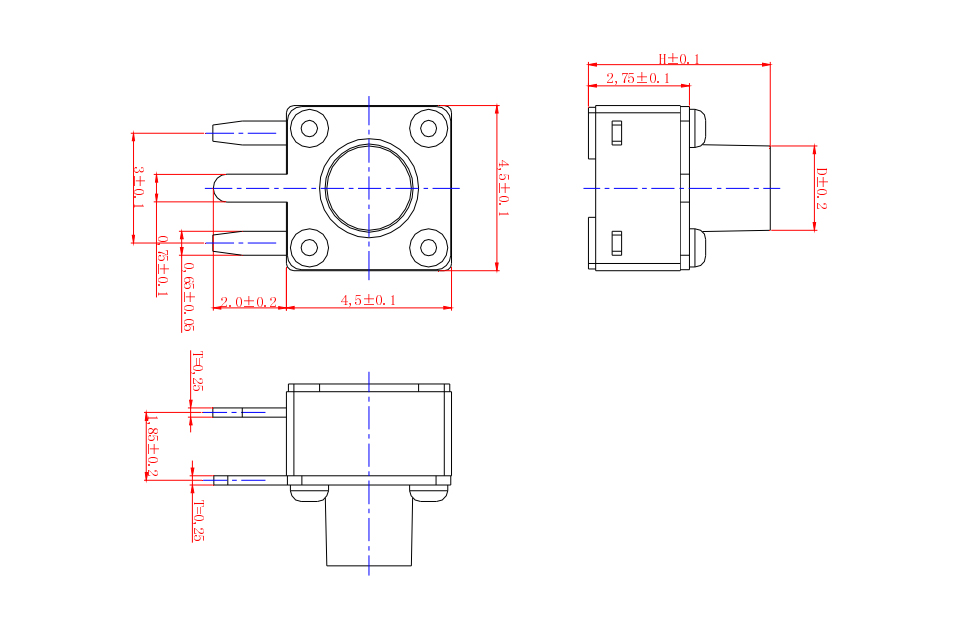

Dimensions Circuit Diagram

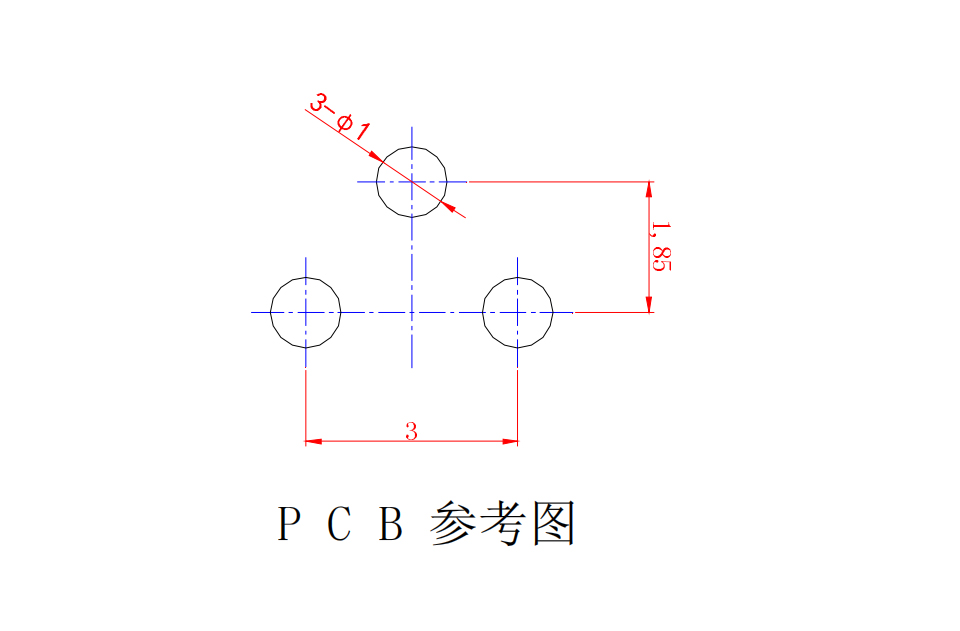

PCB Layout
