Home · Products · Tactile Switch · D Series 4.5x4.5 / 6x6 Positive Pressure Tactile Switch · TS-D009001-224 6*6*5 Silent Tactile Switch
  • TS-D009001-224 6*6*5 Silent Tactile Switch
  • TS-D009001-224 6*6*5 Silent Tactile Switch
D Series 4.5x4.5 / 6x6 Positive Pressure Tactile Switch

TS-D009001-224 6*6*5 Silent Tactile Switch

Inquire Download PDF
PREV：TS-D007239 6*6 2-Position SMD Tactile SwitchNEXT：No next article
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.8 ±0. 3 (H4. 3) 1. 2±0. 3(H5. 0)
Insulation resistance:  100 MΩ
Dielectric strength:  250 V, 50 Hz, 1 min

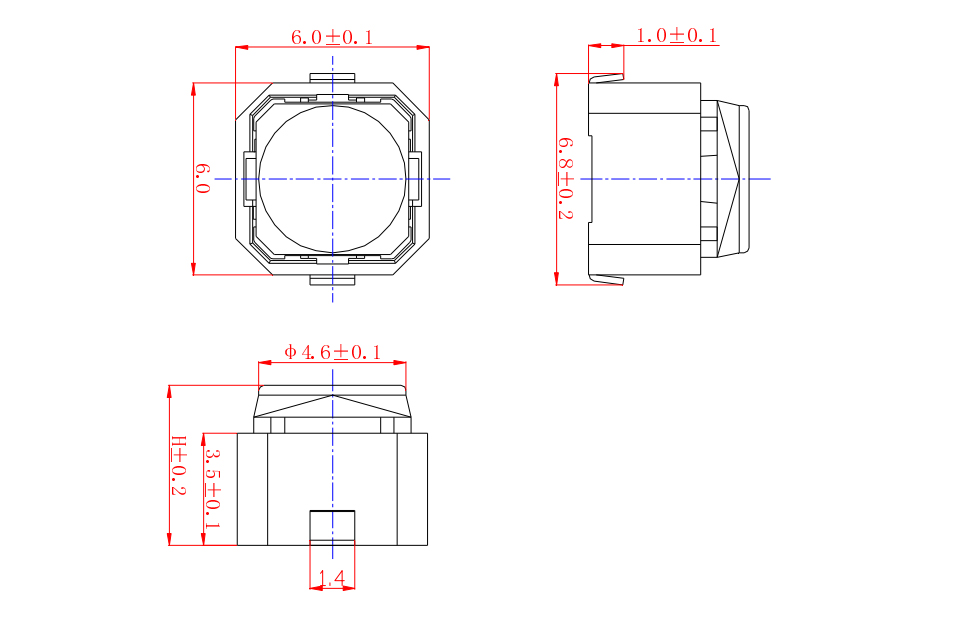

Dimensions Circuit Diagram

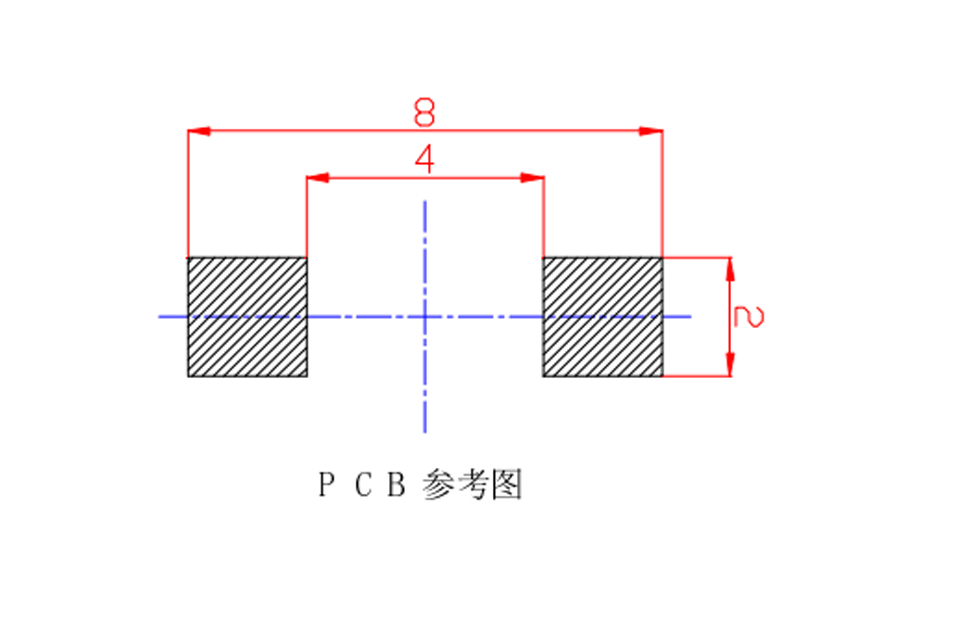

PCB Layout
