TS-D001304 4.5*4.5 SMD Tactile Switch with Bracket

Inquire Download PDF
PREV：TS-D018005-211 4.5*4.5 Waterproof SMD Tactile SwitchNEXT：TS-D008053 6.2*6.2 5-Pin SMD Tactile Switch
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.2± 0.1mm
Insulation resistance:  100 MΩ
Withstand voltage:  250 V, 50 Hz, 1 min

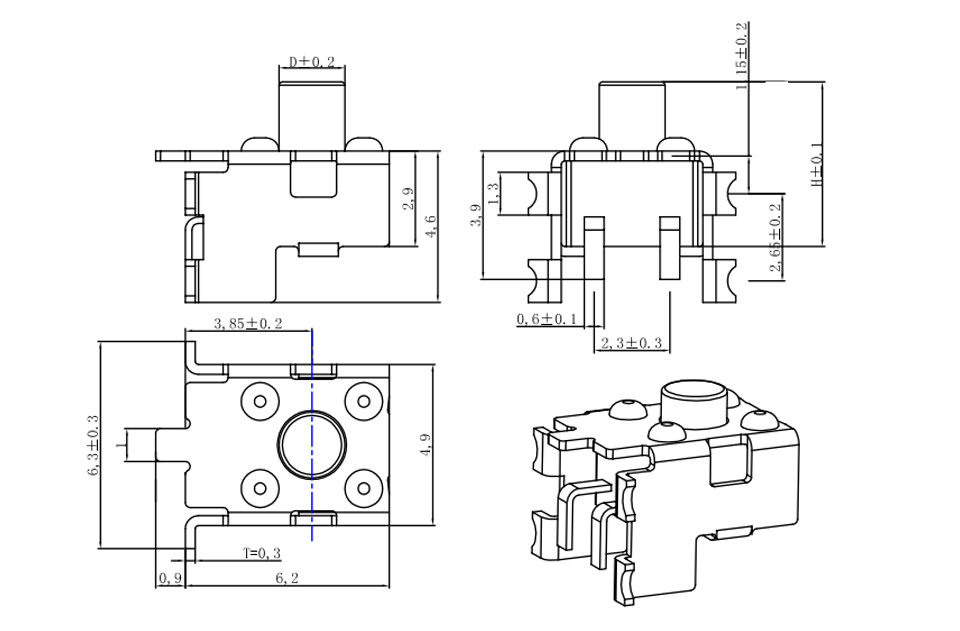

Dimensions Circuit Diagram

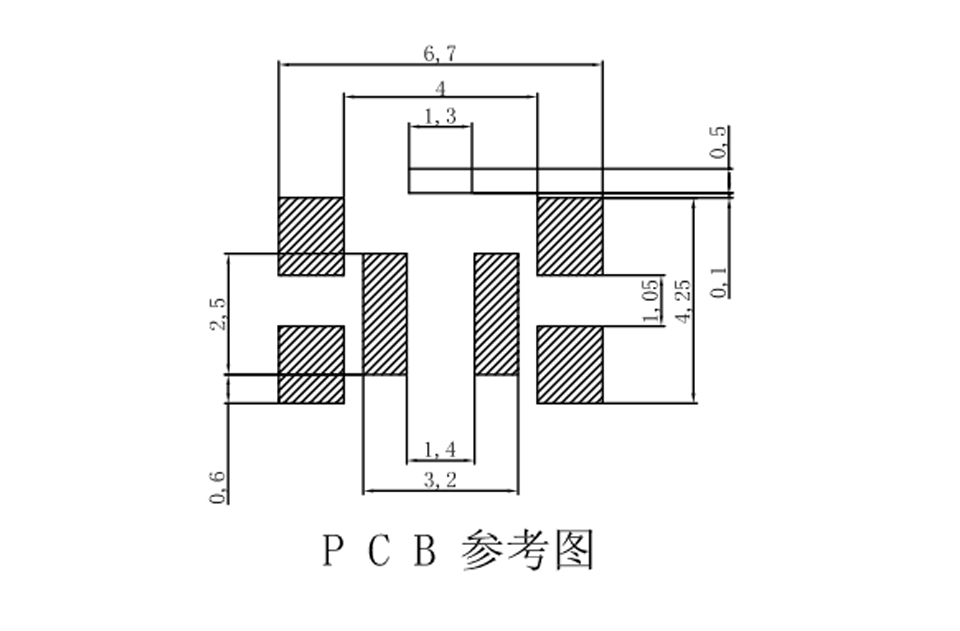

PCB Layout
