D Series 4.5x4.5 / 6x6 Positive Pressure Tactile Switch

Tactile Switch TS-I001108 6×6×5.0 Center 2-Pin, Pin Length 13.5mm

Inquire Download PDF
PREV：Tactile Switch TS-D001172 4.5×4.5, Blue Silicone Actuator, 4-Pin SMDNEXT：TS-D004154 6*6 Square-Cap Through-Hole Tactile Switch

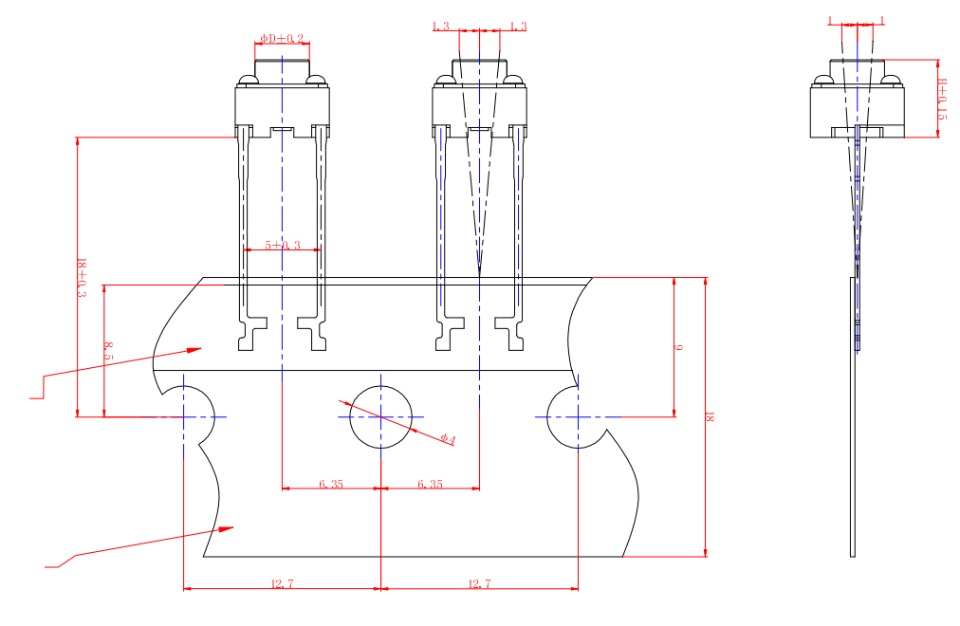

Technical Parameters Drawings
Rated Current： 50mA 12V DC
Contact Resistance： 100mΩ
Travel： 0.25±0.15mm
Insulation Resistance： 100MΩ
Withstand Voltage： 250v 50Hz 1Min

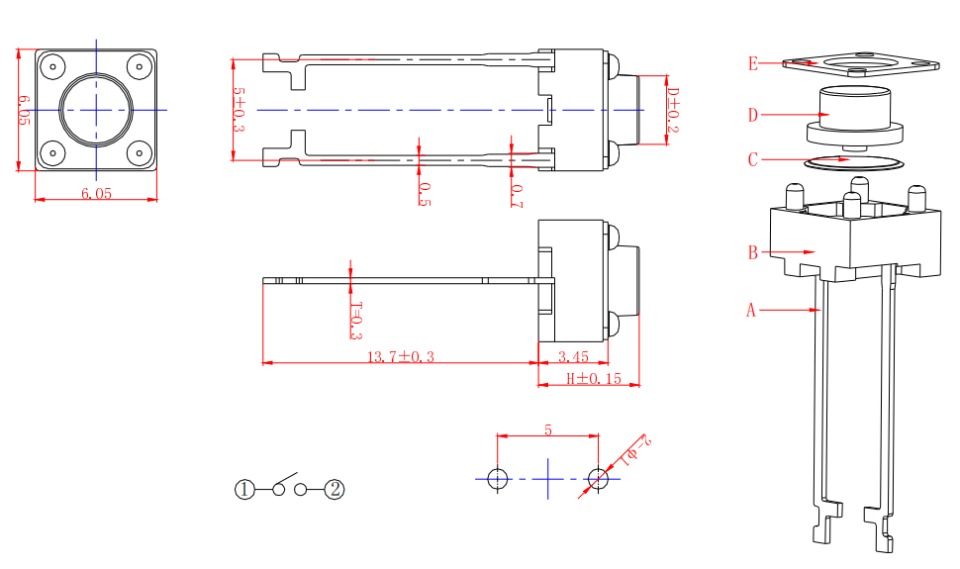

Dimensions Circuit Diagram
PCB Layout
