  • TS-C004058 3*6*2.5 Tactile Switch with Extended Square Actuator
  • TS-C004058 3*6*2.5 Tactile Switch with Extended Square Actuator
C Series 3x3 / 3x6 / 5.2x5.2 Positive Pressure Tactile Switch

TS-C004058 3*6*2.5 Tactile Switch with Extended Square Actuator

Inquire Download PDF
PREV：TS-C014065 Smiling Face 5-Pin Tactile SwitchNEXT：TS-C024015 2*3 Double-Bracket Small Side-Actuated Bluetooth Headsets Tactile Switch
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.30± 0.1mm
Insulation resistance:  100 MΩ

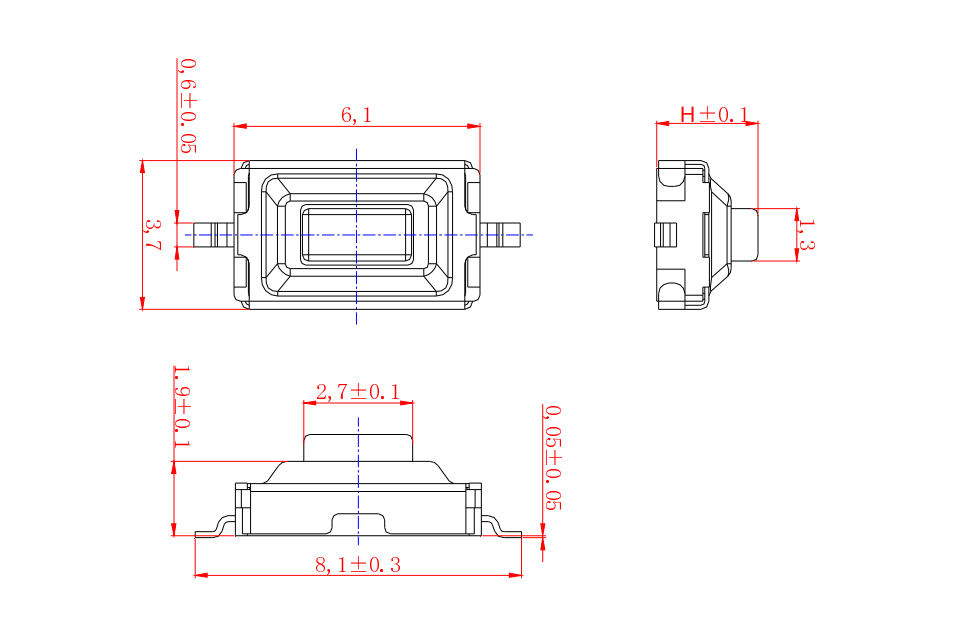

Dimensions Circuit Diagram

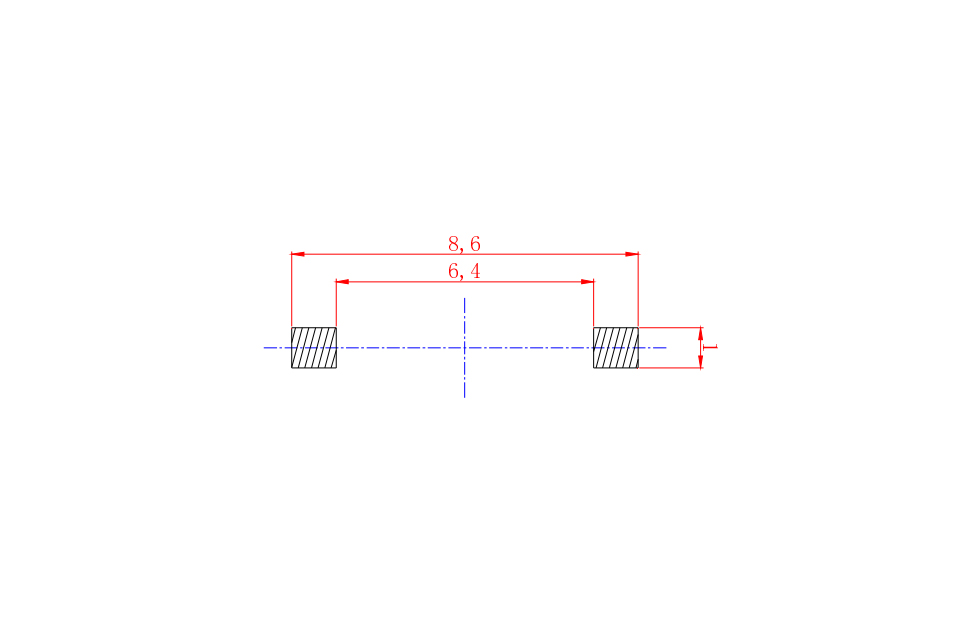

PCB Layout
