TS-C003003 3*6*5 Through-Hole Tactile Switch

Inquire Download PDF
PREV：TS-C008015A 4*4 Square-Cap Tactile Switch with Grounding HousingNEXT：TS-C012049 2*4 Small Side-Actuated Bluetooth Headsets Tactile Switch with Dual-Layer Bracket
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100m Ω max
Travel:  0.3±0.1mm
Insulation resistance:  100 MΩmin
Dielectric strength:  250 V, 50 Hz, 1 min

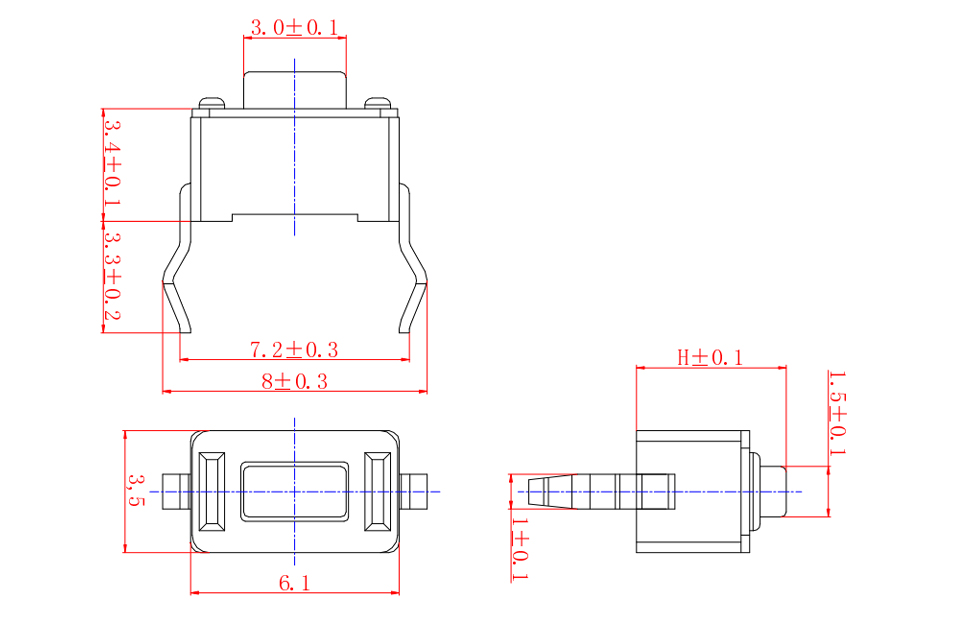

Dimensions Circuit Diagram

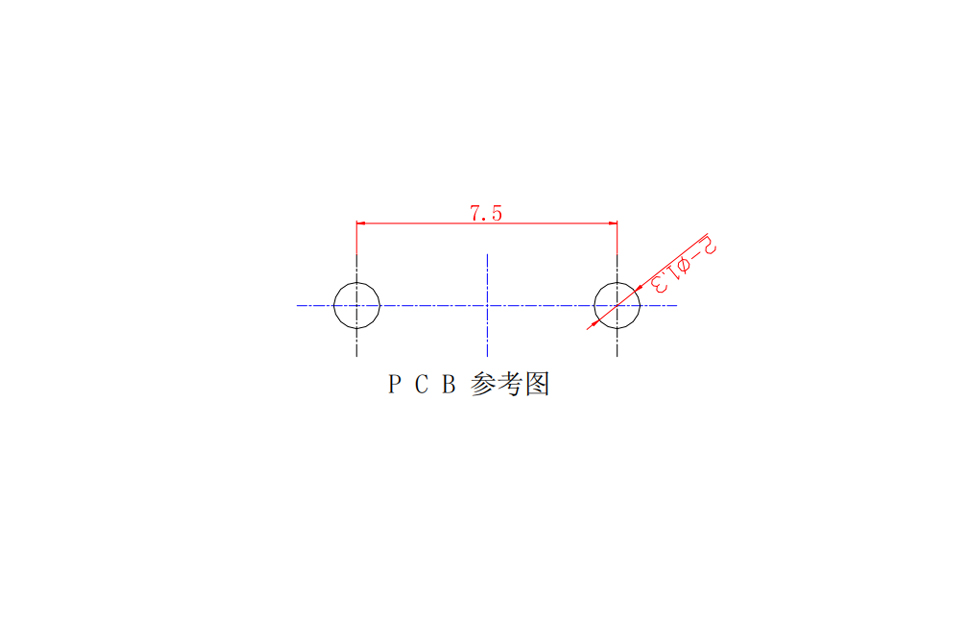

PCB Layout
