  • TS-C002009A 3*6*4.3 Top-Actuated SMD Tactile Switch
  • TS-C002009A 3*6*4.3 Top-Actuated SMD Tactile Switch
C Series 3x3 / 3x6 / 5.2x5.2 Positive Pressure Tactile Switch

TS-C002009A 3*6*4.3 Top-Actuated SMD Tactile Switch

Inquire Download PDF
PREV：TS-C00900 3*6*2.5 Tactile Switch with Flat CapNEXT：TS-C003034 3*6 Bracket-Type Tactile Switch
Technical Parameters Drawings
Rated current:  50 mA, 12 V DC
Contact resistance:  100 mΩ
Travel:  0.3 ± 0.1 mm
Insulation resistance:  100 MΩ
Withstand voltage:  250 V, 50 Hz, 1 min

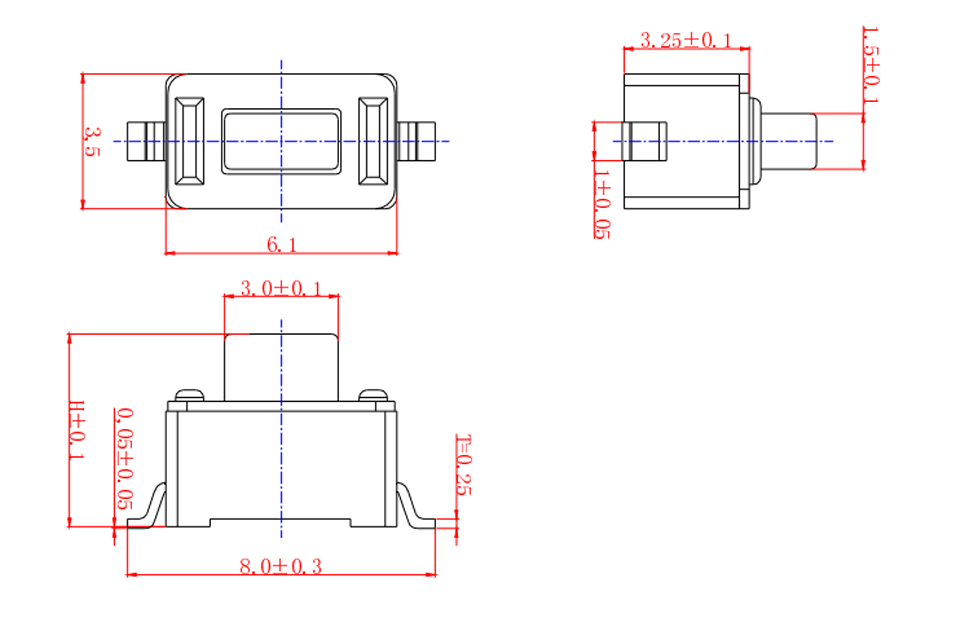

Dimensions Circuit Diagram

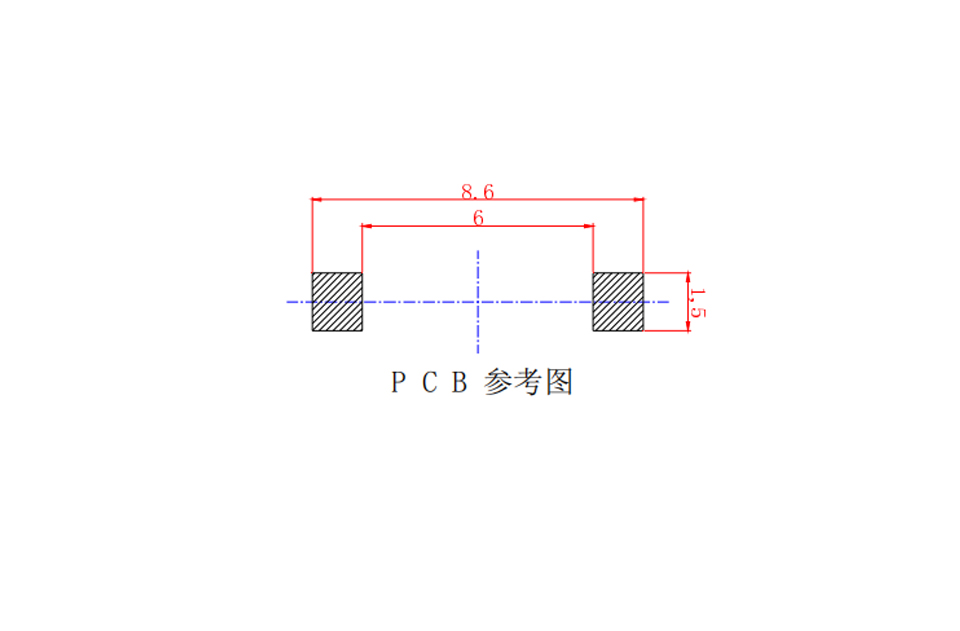

PCB Layout
